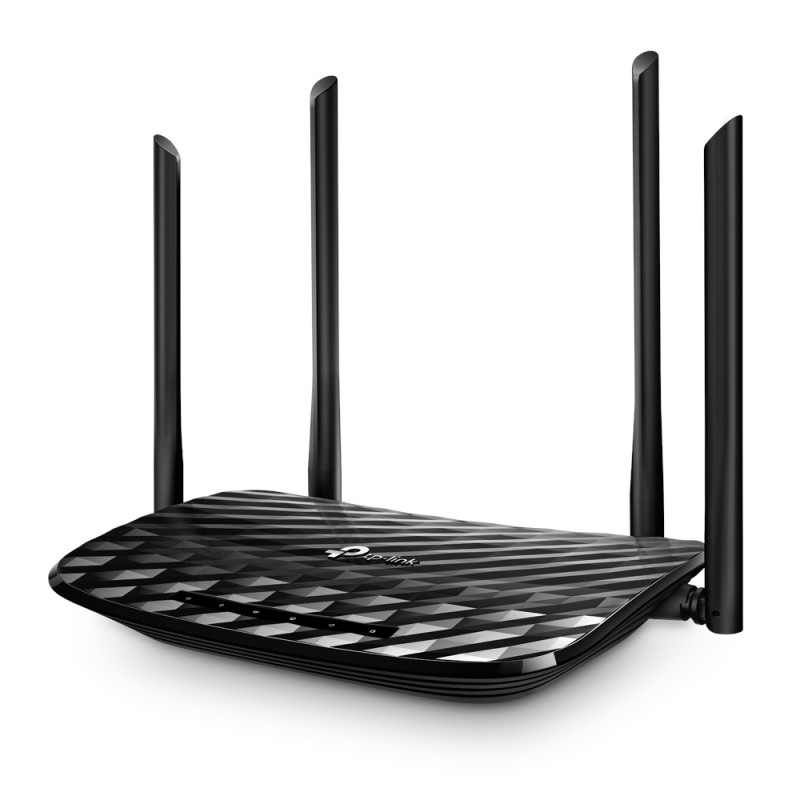

TP-LINK Archer C6
  • TP-LINK Archer C6
  • TP-LINK Archer C6
  • TP-LINK Archer C6
  • TP-LINK Archer C6
  • TP-LINK Archer C6
Smooth Entertainment with AC1200 Dual Band WiFi

The Archer C6 creates a reliable and blazing-fast network powered by 802.11ac WiFi technology. The 2.4 GHz band delivers

speeds up to 300 Mbps allowing you to email and browse the web, while the 5 GHz band delivers speeds up to

867 Mbps making it ideal for HD video streaming and lag-free online gaming.



5 High-Performance Antennas for

WiFi Coverage throughout Your Home


Four external antennas and one internal antenna send WiFi signals to every corner of your home. Stay connected and enjoy fast WiFi whether you are lounging on the sofa or on the balcony. With a powerful chipset, the Archer C6 provides ideal WiFi coverage.



Access Point Mode

Switch the working mode of the Archer C6 to Access Point Mode to share your wired network with other wireless devices.



MU-MIMO

Increases Speed, Throughput, Capacity


MU-MIMO enables the Archer C6 to serve multiple devices simultaneously. Say goodbye to bandwidth congestion and lag as you zip through a more efficient network built for more users and more devices.



Gigabit Connectivity, 10× Faster

With one Gigabit WAN port and four Gigabit LAN port, speeds can be up to 10× faster than a standard Ethernet

connection. Connect an Ethernet cable from the router’s Gigabit Ethernet port to your favorite gaming consoles, smart TV’s and more for reliable high-speed connections.



Easy Setup and Management with the Tether APP

The free Tether app is available for both Android and iOS devices, making it easy to set up the Archer C6 and manage your network settings.
3GN
4GN
AC adapter includedY
Antenna typeExternal
Antennas quantity5
Cables includedLAN (RJ-45)
Cabling technology10/100Base-T(X)
DC-in jackY
Depth144 mm
DHCP clientY
DHCP serverY
DMZ supportY
DoS attack preventionY
Ethernet LANY
Ethernet LAN (RJ-45) ports5
Ethernet LAN data rates10,100 Mbit/s
FilteringY
FirewallY
Height37 mm
IP address filteringY
LED indicatorsLAN,Power,WLAN
Linux operating systems supportedY
MAC address filteringY
Mac compatibilityY
Mac operating systems supportedmacOS
ManualY
Maximum data transfer rate1 Mbit/s
Networking standardsIEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
On/off switchY
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Output current1 A
Output voltage12 V
Package typebox
Port forwardingY
Power source typeAC
Product typeTabletop router
Quick installation guideY
Quick start guideY
Receiver sensitivity5GHz: 11a 54M: -76dBm\n 11ac VHT20 MCS8: -70dBm\n 11ac VHT40 MCS9: -65.5dBm\n 11ac VHT80 MCS9: -61.5dBm\n 2.4G: 11g 54M: -76dBm\n 11n HT20 MCS7: -74dBm\n 11n HT40 MCS7: -71dBm
Reset buttonY
Security algorithms64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Transmit powerCE:
Universal Plug and Play (UPnP)Y
USB portN
VoIP protocolsIPv4, IPv6
VPN supportPPTP, L2TP, IPSec
Wi-Fi standards802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Width230 mm
Windows operating systems supportedWindows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64
WPS push buttonY
Guest accessY
Memory card slot(s)N
Ethernet LAN interface typeFast Ethernet
WAN connection typeRJ-45
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Product colourWhite
WLAN data transfer rate (first band)450 Mbit/s
WLAN data transfer rate (second band)867 Mbit/s
VPN PassthroughY
Indication lightY
Stateful Packet Inspection (SPI)Y

ARCHERC6.pdf

TP-LINK Archer C6 Data Sheet

Download (1.07M)

You might also like

  • External Cat6 UTP LDPE RJ45 Patch Leads
    External Cat6 UTP LDPE RJ45 Patch Leads

TP-LINK Archer C6

RJ45, 12V/1A, IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz, 64/128-bit WEP,WPA / WPA2 / WPA3, WPA-PSK/ WPA2-PSK, IPv4, IPv6

ARCHER C6

In Stock

£55.99
£46.66 Ex VAT.
