3G | N |
4G | N |
AC adapter included | Y |
Antenna gain level (max) | 3 dBi |
Antenna type | External |
Built-in processor | Y |
Cables included | LAN (RJ-45) |
Cabling technology | 10/100/1000Base-T(X) |
Certification | CE, FCC, RoHS |
DC-in jack | Y |
Depth | 164 mm |
Detachable antenna(s) | Y |
DHCP client | Y |
DHCP server | Y |
DMZ support | Y |
Ethernet LAN | Y |
Ethernet LAN (RJ-45) ports | 4 |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Firewall | Y |
Firewall security | DoS, SPI Firewall, IP and MAC Address Binding |
Flash memory | 128 MB |
Height | 36.8 mm |
Internal memory | 256 MB |
LED indicators | LAN,Power,Status,System,WAN,WLAN |
Maximum data transfer rate | 1 Mbit/s |
Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
On/off switch | Y |
Operating relative humidity (H-H) | 10 - 90 % |
Operating temperature (T-T) | 0 - 40 °C |
Output current | 2 A |
Output voltage | 12 V |
Package type | box |
Port forwarding | Y |
Power source type | DC |
Processor cores | 2 |
Processor frequency | 1800 MHz |
Product type | Tabletop router |
Quality of Service (QoS) support | Y |
Quick installation guide | Y |
Receiver sensitivity | 5GHz:\n11ac80M MCS11: -58dBm, 11ac80M MCS0: -88dBm\n11ac40M MCS11: -61dBm, 11ac40M MCS0: -91dBm\n11ac20M MCS11: -63dBm, 11ac20M MCS0: -95dBm\n54M: -76dBm, 6M: -95dBm\n2.4GHz:\n11n40M MCS9: -63dBm, 11n40M MCS0: -89dBm\n11n20M MCS8: -67dBm, 11n20M MCS0: -92 |
Reset button | Y |
Security algorithms | 64-bit WEP,128-bit WEP,WEP,WPA,WPA-PSK,WPA2 |
Storage relative humidity (H-H) | 5 - 90 % |
Storage temperature (T-T) | -40 - 90 °C |
Supported network protocols | IPv4, IPv6 |
Transmit power | 2.4G≤30dBm, 5G≤30dBm dBmW |
Universal Plug and Play (UPnP) | Y |
USB 2.0 ports quantity | 1 |
USB port | Y |
Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
Width | 216 mm |
WPS push button | Y |
Guest access | Y |
Ethernet LAN interface type | Gigabit Ethernet |
WAN connection type | RJ-45 |
Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
Dynamic DNS (DDNS) | Y |
Port-based Network Access Control (PNAC) | Y |
Product colour | Black |
WLAN data transfer rate (first band) | 600 Mbit/s |
WLAN data transfer rate (second band) | 1733 Mbit/s |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
512MB RAM and 128MB Flash, 12V/2A, IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz, PPTP, L2TP

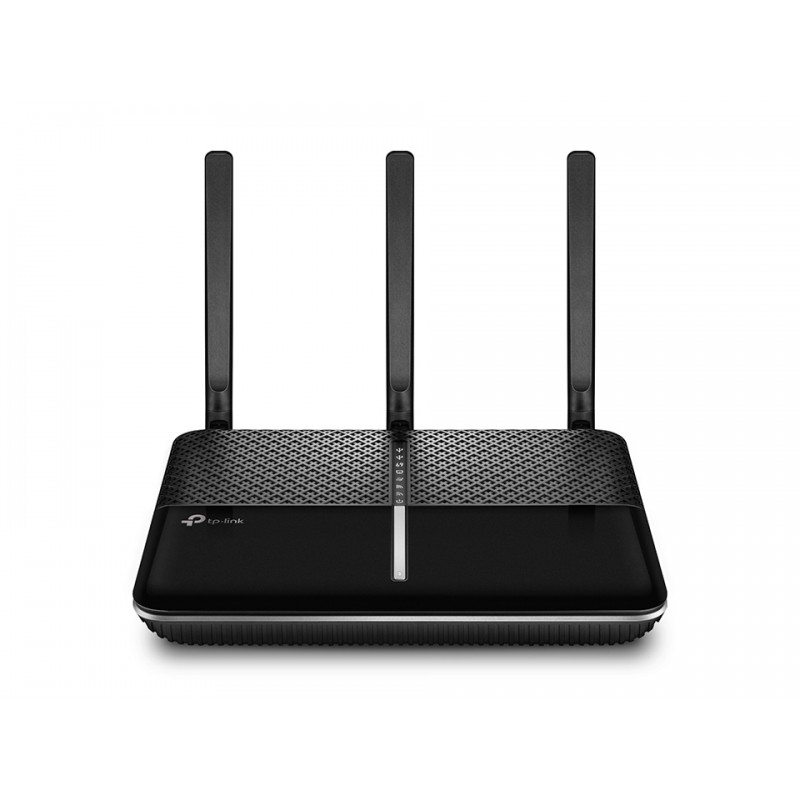

ARCHER C2300
Out of Stock
