TP-LINK AX1500 Wi-Fi 6 Router
  • TP-LINK AX1500 Wi-Fi 6 Router
  • TP-LINK AX1500 Wi-Fi 6 Router
  • TP-LINK AX1500 Wi-Fi 6 Router
  • TP-LINK AX1500 Wi-Fi 6 Router
  • TP-LINK AX1500 Wi-Fi 6 Router
  • TP-LINK AX1500 Wi-Fi 6 Router
  • TP-LINK AX1500 Wi-Fi 6 Router
  • TP-LINK AX1500 Wi-Fi 6 Router
Triple-Core CPU Powered Wi-Fi 6 Stable Next-Gen Performance

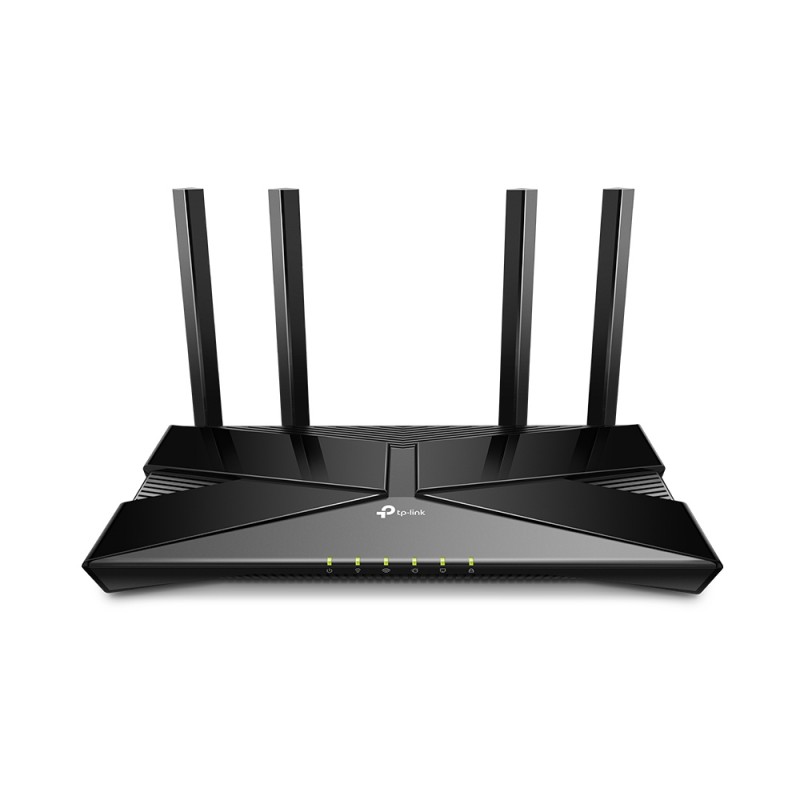

Archer AX10 AX1500 Wi-Fi 6 Router




Advanced, Revolutionary Wi-Fi 6

Wi-Fi 6 delivers a huge boost in speed and total capacity. Get on the latest Wi-Fi technology to wipe out all the annoying jittering and slow down, and enjoy the future network that loads faster and connects more.



Speed Beyond Gigabit

The latest 1024-QAM and higher symbol rate combine to boost speeds for newer devices to the Gigabit level. Connect to a 1 Gbps Wi-Fi network with your phone or laptop, and enjoy speeds comparable to plugging in an Ethernet cable.



Connect Dozens of Devices

Add more Wi-Fi devices without dragging down performance. OFDMA allows multiple devices to use one single band at the same time, enabling your Wi-Fi to bear more devices compared to the same speed level Wi-Fi 5 router.



Less Lag, More Fun

Wi-Fi 6 efficiently transmits data, enabling data packets for different applications to share one broadcast and cut the latency. Enjoy flawless video and audio chats, better gaming speeds, and instantaneous video loading on different devices—all at the same time.



Triple-Core Processor

Instant Response to Every Click

A 1.5 GHz triple-core CPU provides overwhelming power to tackle huge amounts of data transferring, minimizing the latency within your network. Enjoy instant response when you click the play button for online playback and get better quality for the online video chatting.



Boosted Wi-Fi Coverage

Beamforming technology and 4 high-gain antennas combine to generate strong, reliable Wi-Fi signal throughout your home, delivering smooth and stable connections for every client.



Gigabit Broadband Internet Access

All Gigabit Ethernet ports allow you to take full advantage of your broadband speed up to 1 Gbps. Plug your PCs, smart TVs, and game consoles into one of the four Gigabit Ethernet LAN ports for fast, reliable wired connections.



Easy Setup and Use

Whether you prefer the intuitive Tether App or the powerful web interface, you can set up your Archer AX10 in minutes. The Tether App allows you to manage network settings from any Android or iOS device.



Ready for Today and Tomorrow's Smart Home

With the growing number of devices in today's home, everyone deserves a smarter and easier way to bring all your products together. Utilize Amazon Alexa to control everything via voice commands to enjoy truly intelligent life.
3GN
4GN
AC adapter includedY
Antenna typeExternal
Antennas quantity4
Browser supportedInternet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0
Built-in processorY
Cables includedLAN (RJ-45)
CertificationFCC, CE, RoHS
DC-in jackY
Depth126 mm
DHCP clientY
DHCP serverY
DMZ supportY
Ethernet LANY
Ethernet LAN (RJ-45) ports4
Ethernet LAN data rates10,100,1000 Mbit/s
FirewallY
Firewall securitySPI
Flash memory16 MB
Height33 mm
Internal memory256 MB
Linux operating systems supportedY
Mac compatibilityY
Mac operating systems supportedY
Networking standardsIEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Number of products included1 pc(s)
On/off switchY
Output current1 A
Output voltage12 V
Package depth240 mm
Package height73 mm
Package weight780 g
Package width330 mm
Port forwardingY
Power source typeAC
Processor cores3
Processor frequency1500 MHz
Product typeTabletop router
Quick installation guideY
Receiver sensitivity5 GHz:\n11a 6Mbps:-97dBm, 11a 54Mbps:-79dBm\n11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-66dBm\n11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-63dBm\n11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS11:-60dBm\n11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-63dBm\n11ax HE40_MCS0:-
Reset buttonY
Security algorithms64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK
Supported network protocolsIPv4, IPv6
Transmit powerCE:
Universal Plug and Play (UPnP)Y
USB portN
Wi-Fi standards802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
Width260 mm
Windows operating systems supportedWindows 10,Windows 2000,Windows 7,Windows 8,Windows 8.1,Windows 98SE,Windows NT,Windows XP
WPS push buttonY
Guest accessY
Memory card slot(s)N
Ethernet LAN interface typeGigabit Ethernet
WAN connection typeRJ-45
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Dynamic DNS (DDNS)Y
Product colourBlack
WLAN data transfer rate (first band)300 Mbit/s
WLAN data transfer rate (second band)1201 Mbit/s

ARCHERAX10.pdf

TP-LINK AX1500 Wi-Fi 6 Router Data Sheet

Download (1.49M)
