Antenna type | External |
Antennas quantity | 4 |
Cabling technology | 10/100/1000Base-T(X) |
Certification | CE, FCC, RoHS |
Compatible operating systems | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1,\n10, MAC OS, NetWare, UNIX or Linux |
DC-in jack | Y |
Depth | 255 mm |
DHCP client | Y |
DHCP server | Y |
Ethernet LAN (RJ-45) ports | 1 |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Firmware upgradeable | Y |
Frequency band | 2.4 - 5 GHz |
Height | 72 mm |
Input current | 1.5 A |
Input voltage | 12 V |
LED indicators | Y |
Maximum data transfer rate | 867 Mbit/s |
Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
Number of products included | 1 pc(s) |
On/off switch | Y |
Operating relative humidity (H-H) | 0 - 40 % |
Operating temperature (T-T) | 10 - 90 °C |
Package type | box |
Placement | Table |
Power over Ethernet (PoE) | Yes |
Receiver sensitivity | 5 GHz: , 11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm , 11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm , 11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm , 11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm , , 2.4 GHz: , 11g 54Mbps: -78 dBm , 11n H |
Reset button | Y |
Security algorithms | 64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK |
Storage relative humidity (H-H) | 5 - 90 % |
Storage temperature (T-T) | -40 - 70 °C |
WAN connection | Ethernet (RJ-45) |
Web-based management | Y |
Width | 400 mm |
WPS push button | Y |
2.4 GHz | Y |
5 GHz | Y |
Wi-Fi Multimedia (WMM)/(WME) | Y |
MIMO | Y |
MIMO type | Multi User MIMO |
Product colour | White |
Transmitting power (CE) | |
Transmitting power (FCC) | |
Service Set Identifier (SSID) features | Multiple SSIDs |
Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
Maximum data transfer rate (5 GHz) | 867 Mbit/s |
Fit AP mode features | Wireless distribution system (WDS) |
Device type identification | DHCP options |

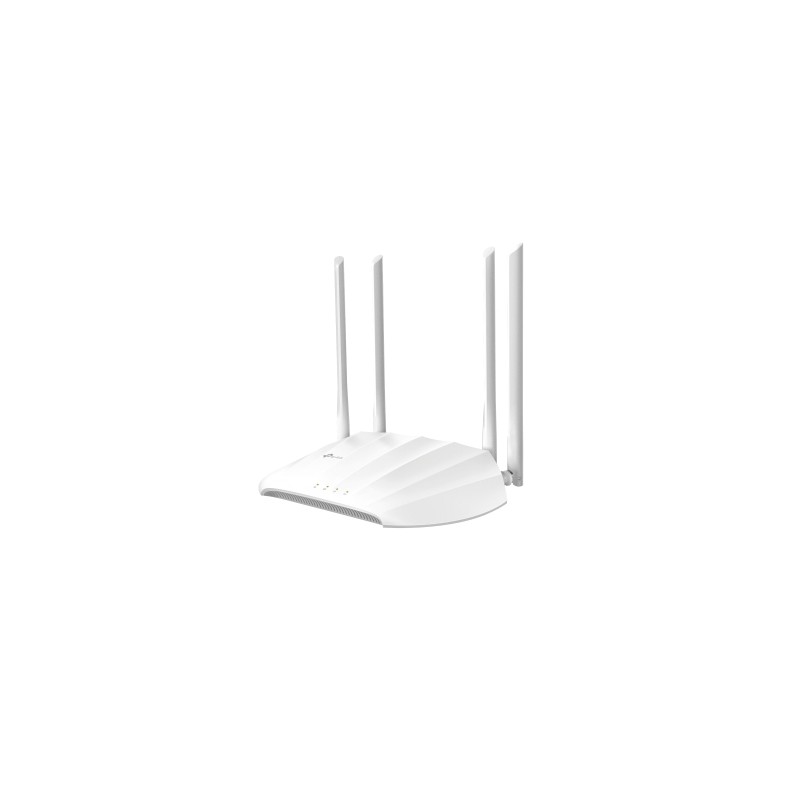

TL-WA1201
In Stock
