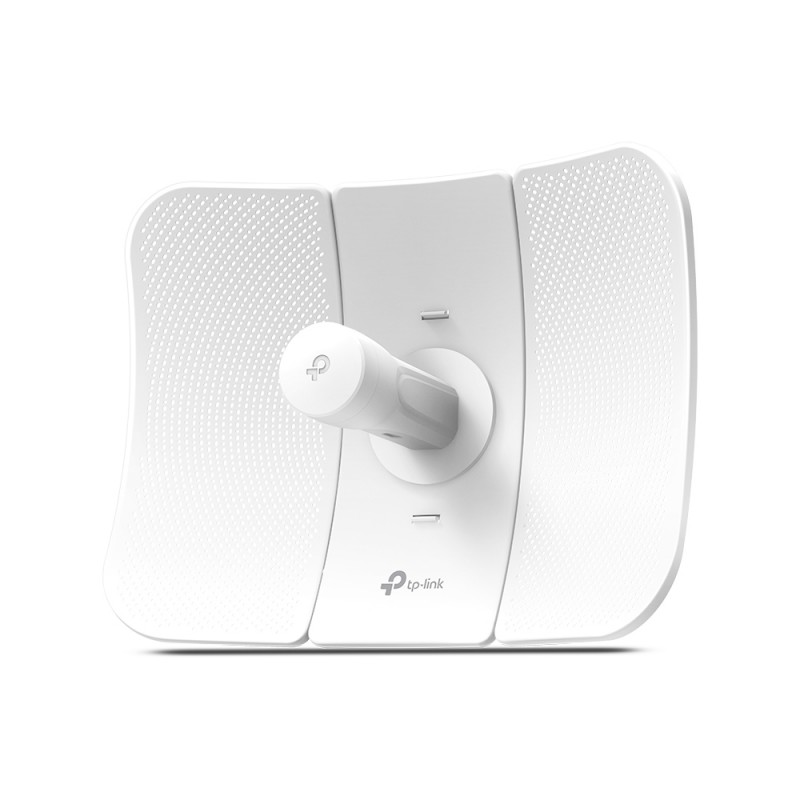

TP-LINK CPE710
  • TP-LINK CPE710
  • TP-LINK CPE710
  • TP-LINK CPE710
  • TP-LINK CPE710
Blazing Speed without Wait

256 QAM and an 80 MHz bandwidth boosts overall speeds up to 867 Mbps, 3× faster than 802.11n Wi-Fi.



Professional-Standard 23 dBi Directional

Antenna for Long-range Wireless Transmission


With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE710 provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications.



Compact and Lightweight Packaging

Small and lightweight boxes benefit shipping, logistics, and retail.



Pharos Control – Centralized Management System

CPE710 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS - provides an alternative management method and allows professionals to access more detailed configurations.
Antenna gain level (max)23 dBi
Built-in processorY
Cables includedAC
CertificationCE, FCC, RoHS, IC
Channel bandwidth80 MHz
Compatible operating systemsMicrosoft Windows 98SE, NT, 2000, XP, Vista, Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX, Linux
Depth280 mm
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Flash memory16 MB
Frequency band5.15 - 5.85 GHz
Height207 mm
Housing materialPlastic
IGMP snoopingY
Input frequency50/60 Hz
Input voltage100 - 240 V
Internal memory128 MB
International Protection (IP) codeIP65
LED indicatorsPower
MAC address filteringY
Maximum data transfer rate867 Mbit/s
Networking standardsIEEE 802.11a,IEEE 802.11ac,IEEE 802.11n
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)-40 - 70 °C
Output current0.6 A
Output voltage24 V
Package typebox
PlacementPole
Power over Ethernet (PoE)Yes
Processor frequency750 Mhz
Quick start guideY
Reset buttonY
Security algorithmsHTTPS,SNMP,SSH,WPA,WPA2,WPA2-AES,WPA2-PSK,WPA2-TKIP
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-40 - 70 °C
SyslogY
Transmitting power27 dBmW
Universal Plug and Play (UPnP)Y
Web-based managementY
Width366 mm
2.4 GHzN
5 GHzY
Auto Wireless Distribution System (WDS)Y
Wireless isolationY
Automatic channel selectionY
PoE adapter includedY
MIMOY
Dynamic Frequency Selection (DFS)Y
Product colourWhite
Service Set Identifier (SSID) featuresMultiple SSIDs,SSID broadcast,SSID broadcast on/off

CPE710.pdf

TP-LINK CPE710 Data Sheet

Download (5.82M)
