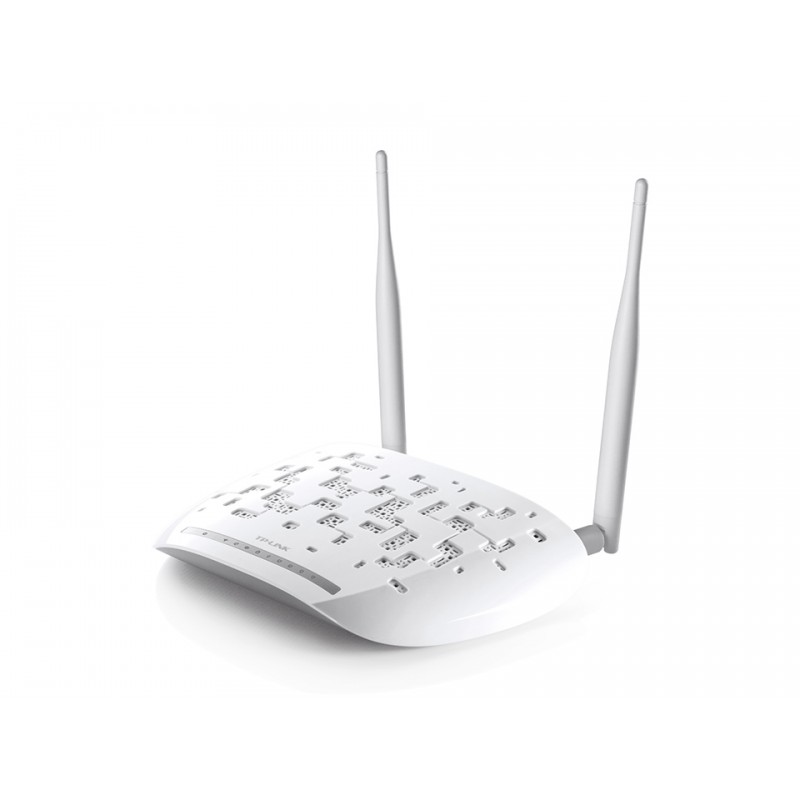

TP-LINK TD-W9970
  • TP-LINK TD-W9970
  • TP-LINK TD-W9970
  • TP-LINK TD-W9970
  • TP-LINK TD-W9970
  • TP-LINK TD-W9970
USB Sharing Port – Easy Sharing

Using the TD-W9970’s multi-functional USB 2.0 port, users can share printers, files and media either throughout the network at home with several different computers or even away, using the device’s FTP server functions so that you never have to part with your files.



Virtually Impregnable-10 VPN IPsec tunnels

The ability to support up to 10 IPsec VPN tunnels simultaneously gives TD-W9970 users the flexibility to setup a virtual private network, to guarantee network security and take advantage of network access whether at home or away, for work or simply to access files from their local networks.



Up to 100Mbps broadband speed

TheTD-W9970 supports VDSL2 and backward compatible with ADSL2+/ADSL2/ADSL, featuring high broadband speeds of up to 100Mbps. It is designed to support the wide deployment of triple play services such as voice, video, data, high-definition television (HDTV) and interactive gaming.



What This Product Does

TP-LINK’s TD-W9970, comes with the latest ITU-T G.993.2 VDSL2 standard, providing up to 100Mbps speed downstream and up stream, compatible with ADSL, fiber and cable services. With 300Mbps wireless speed over 2.4GHz band, the TD-W9970 is a perfect choice for users in search of seamless HD video streaming, online gaming and other bandwidth-intensive tasks.



Interchangeable LAN/WAN Port –Compatible with Fiber/Cable service

The TD-W9970 supports VDSL/ADSL or Ethernet WAN connections (EWAN) that allow users to have the flexibility of different Internet connections. Featuring an interchangeable LAN/WAN port, it is compatible with Fiber/Cable service. This unique feature makes it easier when users need to change to fiber or cable services when necessary.
AC adapter includedYes
Antenna gain level (max)5 dBi
Antenna typeExternal
Antennas quantity2
Cables includedLAN (RJ-45),Phone (RJ-11)
Cabling technology10/100Base-T(X)
CertificationCE, FCC, RoHS
Colour of productWhite
Depth130 mm
DHCP clientYes
DMZ supportNo
DSL connection typeVDSL2
Ethernet LANYes
Ethernet LAN (RJ-45) ports4
Ethernet LAN data rates10,100 Mbit/s
Firewall securityNAT, SPI
Firmware upgradeableYes
Frequency range2.4 - 2.4835 GHz
Height36 mm
IP address filteringYes
LED indicatorsYes
Linux operating systems supportedYes
MAC address filteringYes
Mac operating systems supportedYes
Networking standardsIEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3u
On/off switchYes
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Parental controlYes
Quality of Service (QoS) supportYes
Quick start guideYes
Reset buttonYes
RJ-11 ports quantity1
Security algorithms128-bit AES,128-bit WEP,192-bit AES,256-bit AES,3DES,64-bit WEP,DES,MD5,SHA-1,WPA,WPA-PSK,WPA2,WPA2-PSK
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Universal Plug and Play (UPnP)Yes
URL filteringYes
USB ports quantity1
USB version2.0
VPN supportPPTP, L2TP, IPSec Pass-through
VPN tunnels quantity10
WAN connectionADSL (RJ-11)
Web-based managementYes
Wi-FiYes
Wi-Fi standards802.11b,802.11g,802.11n
Width195 mm
Windows operating systems supportedYes
WLAN data transfer rates supported300 Mbit/s
WPS push buttonYes

TD-W9970.pdf

TP-LINK TD-W9970 Data Sheet

Download (1.72M)
