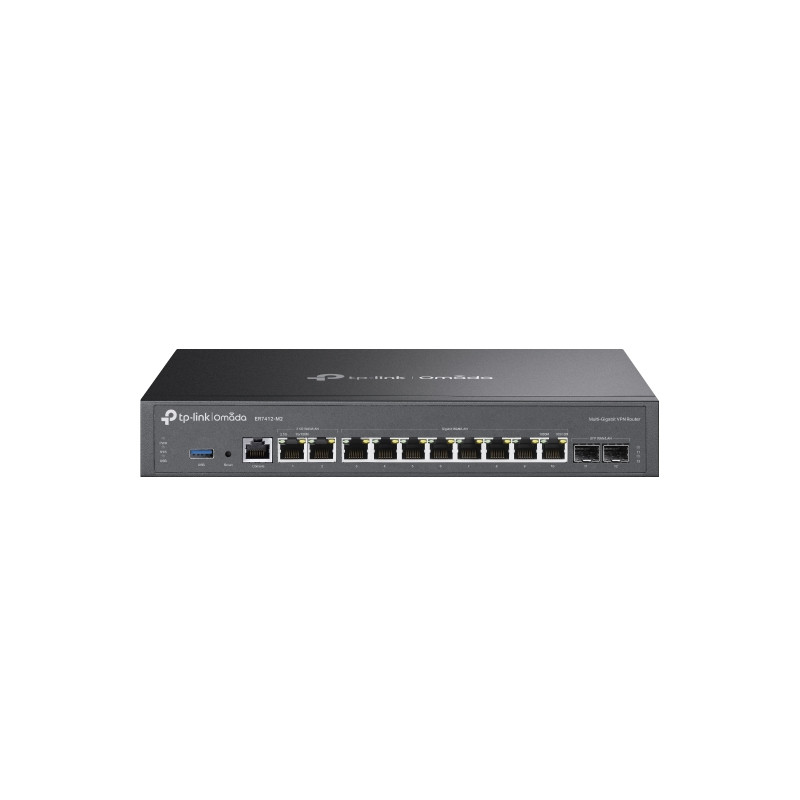

Omada Multi-Gigabit VPN Router

- 2× 2.5Gbps WAN/LAN RJ45 Ports
- 10× Gigabit WAN/LAN Ports (2× SFP, 8× RJ45)
- Load Balancing on up to 11 WAN Ports
- Quad-Core 2.0 GHz CPU
- Centralized Cloud Management
- SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
- Multi-Net DHCP
- DPI & IPS/IDS

Engineered for Dense Environments, Powered by
Dual 2.5 Gbps Ports and Quad-Core 2.0 GHz CPU
Easily build a multi-gigabit network for schools, hotels, and offices.

Up to 11 WAN Ports & One USB WAN for Mobile Broadband

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

High-Security and High-Performance VPN
SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.

Abundant Security Features

DPI (Deep Packet Inspection)
Easily specify internet access rights and strategies via DPI (Deep Packet Inspection), IP/MAC/URL Filtering and Access Control List (ACL).

IDS/IPS
The integrated IDS/IPS engine bolsters threat detection and defense. It is constantly protected via the built-in attack prevention signature database with 7000+ signature rules that can be updated regularly.

DoS/DDoS Protection
Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.

AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Access Control List (ACL)	Y
Cables included	AC,LAN (RJ-45)
Depth	180 mm
DHCP server	Y
DMZ support	Y
DoS attack prevention	Y
Ethernet interface type	2.5 Gigabit Ethernet,Gigabit Ethernet
Ethernet LAN (RJ-45) ports	7
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Flash memory	128 MB
Height	44 mm
Internal memory	1024 MB
Internal memory type	DDR4
Linux operating systems supported	Y
Mac operating systems supported	Y
Network address translation (NAT)	Y
Networking standards	IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Operating relative humidity (H-H)	10 - 90 %
Operating temperature (T-T)	0 - 45 °C
Power consumption (max)	18.5 W
Quick start guide	Y
Rack mounting	Yes
Reset button	Y
Security algorithms	128-bit AES,192-bit AES,256-bit AES,DES,MD5,SHA-1,SHA-2,SHA-384,SHA-512
Storage relative humidity (H-H)	5 - 90 %
Storage temperature (T-T)	-40 - 70 °C
Universal Plug and Play (UPnP)	Y
URL filtering	Y
USB ports quantity	1
VLAN support	Y
VPN tunnels quantity	80
Web-based management	Y
Width	294 mm
Windows operating systems supported	Windows 10,Windows 11,Windows 2000,Windows 7,Windows 8,Windows 8.1,Windows 98SE,Windows NT,Windows Vista,Windows XP
SFP module slots quantity	2
ARP attack prevention	Y
Static route	Y
ICMP attack prevention	Y
Product colour	Black
Compliance certificates	CE,Federal Communications Commission (FCC)
SFP WAN	Y
WAN/Ethernet LAN ports quantity	2
Number of console ports	1
