10G support | No |
Basic switching RJ-45 Ethernet ports quantity | 5 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
DC input voltage | 5 V |
Depth | 64 mm |
Flow control support | Y |
Heat dissipation | 12.11 BTU/h |
Height | 24 mm |
Input current | 1 A |
LED indicators | Y |
MAC address table | 2000 entries |
Mean time between failures (MTBF) | 1455562 h |
Networking standards | IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x |
Operating relative humidity (H-H) | 10 - 90 % |
Operating temperature (T-T) | 0 - 40 °C |
Power consumption (max) | 3.55 W |
Power over Ethernet (PoE) | No |
Power source | AC |
Power supply included | Y |
Quality of Service (QoS) support | Y |
Rack mounting | No |
Stackable | No |
Storage relative humidity (H-H) | 5 - 95 % |
Storage temperature (T-T) | -10 - 70 °C |
Store-and-forward | Y |
Switch type | Unmanaged |
Switching capacity | 10 Gbit/s |
Weight | 160 g |
Width | 100 mm |
Packet forwarding rate (1 Gbps) | 1488000 pps |
Packet forwarding rate (100 Mbps) | 148800 pps |
Packet forwarding rate (10 Mbps) | 14880 pps |
Product colour | Black |
Sustainability certificates | CE,RoHS |
10 Gbps, 5x 10/100/1000 RJ-45, 100 x 64 x 24 mm

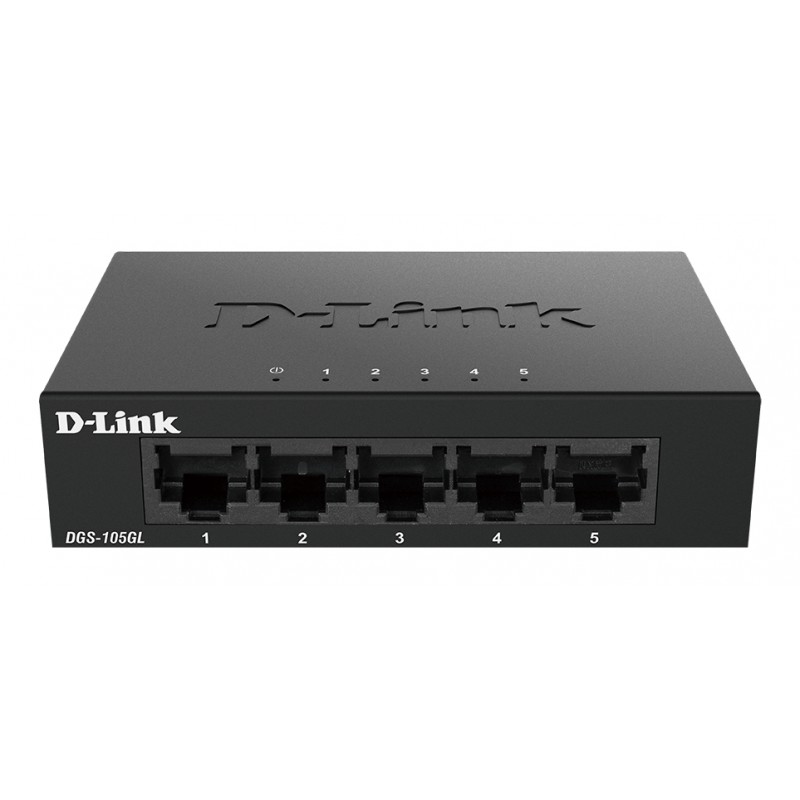

DGS-105GL/B
