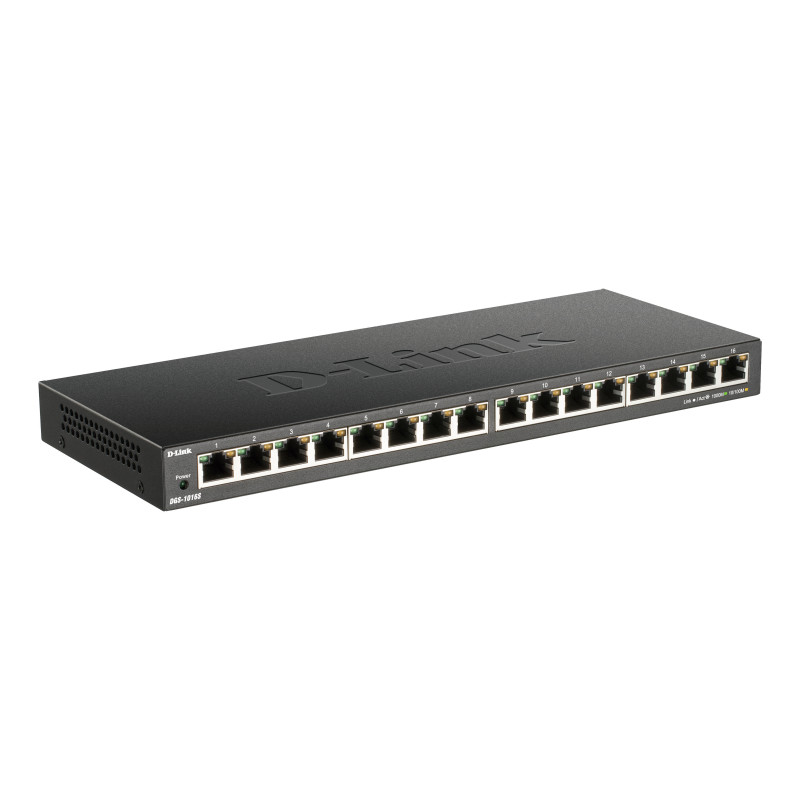

D-Link 16‑Port Gigabit Unmanaged Switch
  • D-Link 16‑Port Gigabit Unmanaged Switch
  • D-Link 16‑Port Gigabit Unmanaged Switch
  • D-Link 16‑Port Gigabit Unmanaged Switch
  • D-Link 16‑Port Gigabit Unmanaged Switch
Slim, Low-Profile Design
Allowing the switch to be placed on the desktop or mounted on the wall

High-Speed Gigabit Networking
Connect up to 16 devices for fast file transfers and smooth media streaming

Silent Operation
Fanless design means the switch is virtually silent when in use

Energy Efficient
Integrated energy-saving technology to reduce power usage automatically

Connect More, Connect Faster
The 16-Port Gigabit Unmanaged Switch is ideal for homes and small-to-medium-sized businesses looking for a quick and easy way to upgrade or expand their network. Its slim, low-profile design means it can be placed on the desktop or mounted on the wall. Simple to set up with no software or configuration needed.

Silent and built to last
Metal casing with a fanless design not only means silent operation but also reduces energy usage and enhances reliability.

Visual Cable Diagnostics
LEDs on each port allow you to quickly see when something is wrong with the connection.

Good for your wallet, great for the planet
With its integrated power-saving technologies, the switch automatically reduces power consumption when a low-traffic or idle port is detected. It can also detect when a shorter network cable is connected to use less power on that port.
10G supportN
Auto MDI/MDI-XY
Auto-negotiationY
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
CertificationCE, FCC, ICES 003, RCM
Copper ethernet cabling technology1000Base-T
DC input voltage12 V
Depth110 mm
Flow control supportY
Full duplexY
Heat dissipation30.32 BTU/h
Height25 mm
Input current1 A
Jumbo frames supportY
LED indicatorsActivity,Link,Power,Speed
MAC address table8000 entries
Mean time between failures (MTBF)564658 h
Networking standardsIEEE 802.1p,IEEE 802.3az,IEEE 802.3x
Number of queues8
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Packet buffer memory0.512 MB
Plug and PlayY
Power consumption (max)8.89 W
Power over Ethernet (PoE)N
Quality of Service (QoS) supportY
SafetyLVD
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-40 - 70 °C
Store-and-forwardY
Switch typeUnmanaged
Switching capacity32 Gbit/s
Weight770 g
Width280 mm
Jumbo frames9216
Packet forwarding rate (1 Gbps)1488000 pps
Packet forwarding rate (100 Mbps)148800 pps
Packet forwarding rate (10 Mbps)14880 pps
Cable length detectionY
Product colourBlack
FanlessY
Half duplexY
Harmonized System (HS) code85176990

dgs-1016sb.pdf

D-Link 16‑Port Gigabit Unmanaged Switch Data Sheet

Download (386.85k)
