10G support | No |
Auto MDI/MDI-X | Y |
Basic switching RJ-45 Ethernet ports quantity | 8 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
DC input voltage | 5 V |
Depth | 85 mm |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Full duplex | Y |
Height | 34 mm |
Housing material | Plastic |
Input current | 1 A |
Jumbo frames support | Y |
LED indicators | Y |
MAC address table | 4000 entries |
Manual | Y |
Mean time between failures (MTBF) | 1046472 h |
Networking standards | IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u |
Operating relative humidity (H-H) | 10 - 90 % |
Operating temperature (T-T) | 0 - 40 °C |
Packet buffer memory | 0.128 MB |
Power consumption (max) | 2.55 W |
Power over Ethernet (PoE) | No |
Quality of Service (QoS) support | Y |
Rack mounting | No |
Storage relative humidity (H-H) | 5 - 90 % |
Storage temperature (T-T) | -10 - 70 °C |
Store-and-forward | Y |
Switch type | Unmanaged |
Switching capacity | 16 Gbit/s |
Weight | 400 g |
Width | 138 mm |
Jumbo frames | 9216 |
MAC address auto-learning supported | Y |
Packet forwarding rate (1 Gbps) | 1488000 pps |
Packet forwarding rate (100 Mbps) | 148800 pps |
Packet forwarding rate (10 Mbps) | 14880 pps |
Product colour | Black |
Unmanaged, 8 x RJ-45, 1000BASE-T Gigabit Ethernet, MAC 4K, QoS, Jumbo frame, 111 x 75 x 30 mm

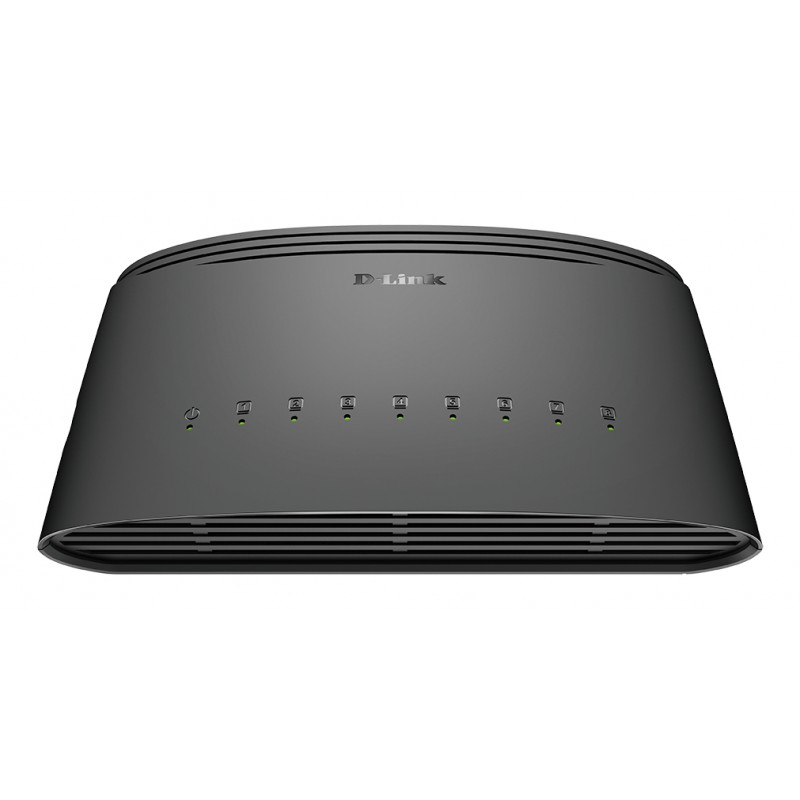

DGS-1008D/E
