10G support | Yes |
Basic switching RJ-45 Ethernet ports quantity | 10 |
Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
Copper ethernet cabling technology | 10BASE-T,10GBASE-T,100BASE-TX,1000BASE-T |
DC input voltage | 12 V |
Depth | 203 mm |
Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
Firmware upgradeable | Y |
Flow control support | Y |
Full duplex | Y |
Gigabit Ethernet (copper) ports quantity | 8 |
Heat dissipation | 48.45 BTU/h |
Height | 93 mm |
IGMP snooping | Y |
Input current | 2.5 A |
Latency (1 Gbps) | 3.2 µs |
LED indicators | Activity,Link,Power |
Link aggregation | Y |
MAC address table | 16000 entries |
Manual | Y |
Multicast support | Y |
Networking standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3an,IEEE 802.3az,IEEE 802.3bz,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
Number of queues | 8 |
Number of VLANs | 64 |
Operating temperature (T-T) | 0 - 40 °C |
Packet buffer memory | 2 MB |
Port mirroring | Y |
Power consumption (max) | 14.19 W |
Power over Ethernet (PoE) | No |
Power supply included | Y |
Quality of Service (QoS) support | Y |
Rate limiting | Y |
Storage temperature (T-T) | -40 - 70 °C |
Store-and-forward | Y |
Switch layer | L2/L3 |
Switching capacity | 56 Gbit/s |
VLAN support | Y |
Web-based management | Y |
Weight | 1515 g |
Width | 268 mm |
Product colour | Black |
Virtual LAN features | Port-based VLAN,Tagged VLAN |
DHCP features | DHCP client |
Sustainability certificates | CE |
10G Ethernet (copper) ports quantity | 2 |

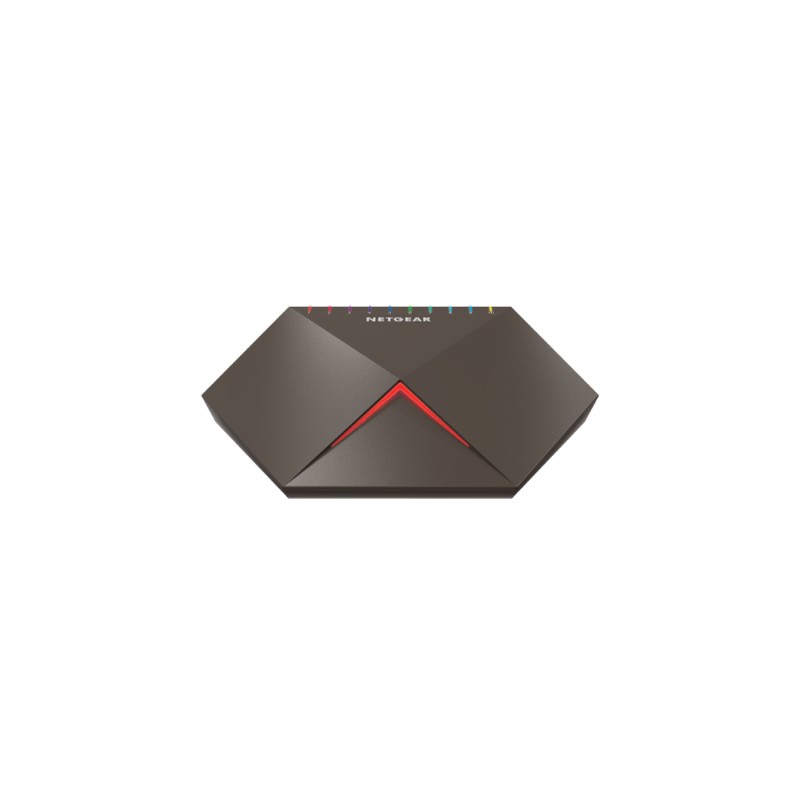

56 Gbps Bandwidth, 8 Gigabit ports, 2 10-Gigabit/Multi-Gigabit Ports, QoS, Multicast, Password management, Port mirroring
GS810EMX-100UKS
Out of Stock
