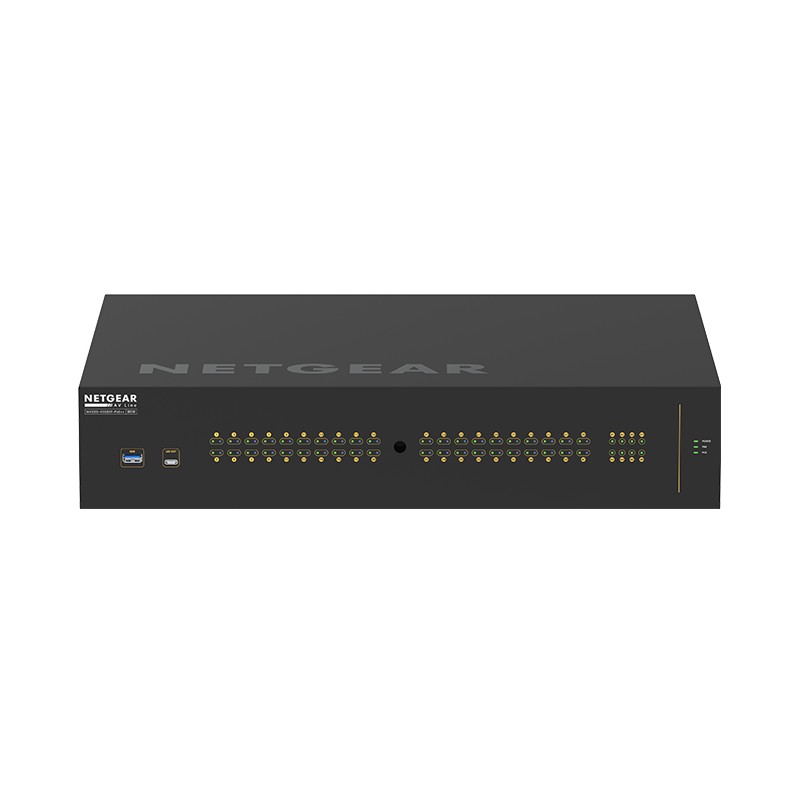

Netgear M4250-40G8XF-PoE++
  • Netgear M4250-40G8XF-PoE++
  • Netgear M4250-40G8XF-PoE++
  • Netgear M4250-40G8XF-PoE++
  • Netgear M4250-40G8XF-PoE++
  • Netgear M4250-40G8XF-PoE++
  • Netgear M4250-40G8XF-PoE++
  • Netgear M4250-40G8XF-PoE++
  • Netgear M4250-40G8XF-PoE++
Pre-configured for out-of-the-box use NETGEAR IGMP Plus™ enables instant multicast functionality for most AV over IP installationsDedicated AV web-based GUI interface Unique interface designed for the AV professional with color-coded, port-based profilesProfiles for common audio protocols Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate licenseVideo profiles built-in Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as neededUnique Automatic Configuration Auto-trunk and auto-lag functionality automatically configures other M4250 switches for use in star topology.Easier configuration with new AV GUI The AV-oriented, web-based GUI permits factory or user-specified profiles to be assigned to individual ports as needed.Use in noise-sensitive environments Adjustable fans can be turned off if certain conditions are met. Even the default Quiet mode is quieter than most other switches.Get up and running fast with little engineering time required Our NETGEAR IGMP PlusTM feature is set from the factory to ensure out-of-the-box functionality for most AV over IP installationsMultiple mounting options provide ultimate flexibility Threaded mounting holes sized to industry standards are built into the chassis for mounting behind a display or clamped to a truss.M4250 AV Line Switches An entirely new series of switches developed and engineered for the growing AV over IP market.
10G supportYes
Basic switching RJ-45 Ethernet ports quantity40
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Cables includedLAN (RJ-45),USB Type-C
Depth86.4 mm
Form factor2u
Heat dissipation3113.57 BTU/h
Height350 mm
Jumbo frames supportY
Latency (1 Gbps)2.78 µs
Latency (10 Gbps)0.73 µs
MAC address table16 entries
Networking standardsIEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
Noise level60 dB
Power consumption (typical)912 W
Power over Ethernet (PoE)Yes
Power supply includedY
Rack mount kitY
Rack mountingYes
Rack railsY
Switch typeManaged
Switching capacity240 Gbit/s
Throughput178.56 Mpps
Total Power over Ethernet (PoE) budget2880 W
USB 2.0 ports quantity1
User guideY
Weight10280 g
Width440 mm
Installed SFP+ modules quantity8
Product colourBlack
FanlessY
Power over Ethernet (PoE) type supportedActive PoE

gsm4248ux-100eus.pdf

Netgear M4250-40G8XF-PoE++ Data Sheet

Download (8.18M)

Similar products

  • TP-LINK 8-port 10/100 PoE Switch
    TP-LINK 8-port 10/100 PoE Switch
  • D-Link DGS-1510-28P
    D-Link DGS-1510-28P
  • TP-LINK TL-SF1005D
    TP-LINK TL-SF1005D
  • TP-LINK 8-Port 10/100Mbps Desktop Switch
    TP-LINK 8-Port 10/100Mbps Desktop Switch
  • Linksys LGS124-UK
    Linksys LGS124-UK

Netgear M4250-40G8XF-PoE++

10/100/1000BASE-T, PoE++, SFP+, USB, RS232, RJ45, 2U, 440 x 86.4 x 350 mm, 10.28 Kg

GSM4248UX-100EUS

Out of Stock

£5,700.70
£4,750.58 Ex VAT.
