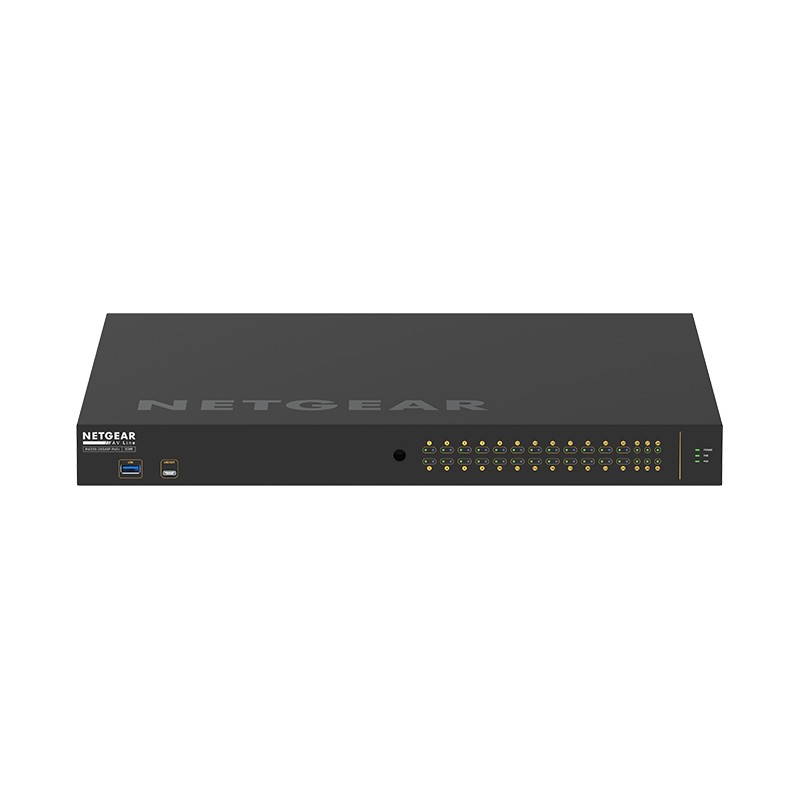

Netgear M4250-26G4XF-PoE+
  • Netgear M4250-26G4XF-PoE+
  • Netgear M4250-26G4XF-PoE+
  • Netgear M4250-26G4XF-PoE+
  • Netgear M4250-26G4XF-PoE+
  • Netgear M4250-26G4XF-PoE+
  • Netgear M4250-26G4XF-PoE+
  • Netgear M4250-26G4XF-PoE+
  • Netgear M4250-26G4XF-PoE+
Pre-configured for out-of-the-box use NETGEAR IGMP PlusTM enables instant multicast functionality for most AV over IP installationsDedicated AV web-based GUI interface Unique interface designed for the AV professional with color-coded, port-based profilesProfiles for common audio protocols Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate licenseVideo profiles built-in Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as neededUnique Automatic Configuration Auto-trunk and auto-lag functionality automatically configures other M4250 switches for use in star topology.Rackmount versatility 1U, 400mm deep rackmount with all power and Ethernet ports on the backReversed mounting possibility Possible reversed mounting with ports in the front including recessed mounting to protect cablesUniversal mounting availability Mounting outside the rack made possible with bottom M5 and front M10 threaded holesAdjustable fan functionality Quiet mode with 42dB@25ºC, or fanless mode when PoE load and temperature allowEasier configuration with new AV GUI The AV-oriented, web-based GUI permits factory or user-specified profiles to be assigned to individual ports as needed.Use in noise-sensitive environments Adjustable fans can be turned off if certain conditions are met. Even the default Quiet mode is quieter than most other switches.Get up and running fast with little engineering time required Our NETGEAR IGMP Plus TM feature is set from the factory to ensure out-of-the-box functionality for most AV over IP installationsMultiple mounting options provide ultimate flexibility Threaded mounting holes sized to industry standards are built into the chassis for mounting behind a display or clamped to a truss.
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Built-in processorY
Cables includedAC,LAN (RJ-45),USB Type-C
Depth43.2 mm
Form factor1U
Height400 mm
Jumbo frames supportY
Latency (1 Gbps)2.29 µs
Latency (10 Gbps)0.83 µs
MAC address table16 entries
Noise level42 dB
Number of VLANs4
Packet buffer memory16 MB
Power over Ethernet (PoE)Yes
Power supply includedY
Processor modelARM Cortex-A57
Rack mount kitY
Rack mountingYes
Switch typeManaged
Switching capacity132 Gbit/s
Temperature sensorY
Throughput98.21 Mpps
USB 2.0 ports quantity1
VLAN supportY
Weight5450 g
Width440 mm
Jumbo frames12000
Installed SFP+ modules quantity4
Power over Ethernet (PoE) power per port45 W
Product colourBlack
FanlessY
IPv4 routes512
IPv6 routes128
IPv4 FIB entries256
IPv6 FIB entries16

gsm4230px-100eus.pdf

Netgear M4250-26G4XF-PoE+ Data Sheet

Download (1.84M)

Similar products

  • TP-LINK 8-port 10/100 PoE Switch
    TP-LINK 8-port 10/100 PoE Switch
  • D-Link DGS-1510-28P
    D-Link DGS-1510-28P
  • TP-LINK TL-SF1005D
    TP-LINK TL-SF1005D
  • TP-LINK 8-Port 10/100Mbps Desktop Switch
    TP-LINK 8-Port 10/100Mbps Desktop Switch
  • Linksys LGS124-UK
    Linksys LGS124-UK

Netgear M4250-26G4XF-PoE+

1U, PoE+, 10/100/1000BASE-T, SFP+, USB, RJ45, 440 x 400 x 43.2 mm, 5.45 kg

GSM4230PX-100EUS

In Stock

£1,905.54
£1,587.95 Ex VAT.
