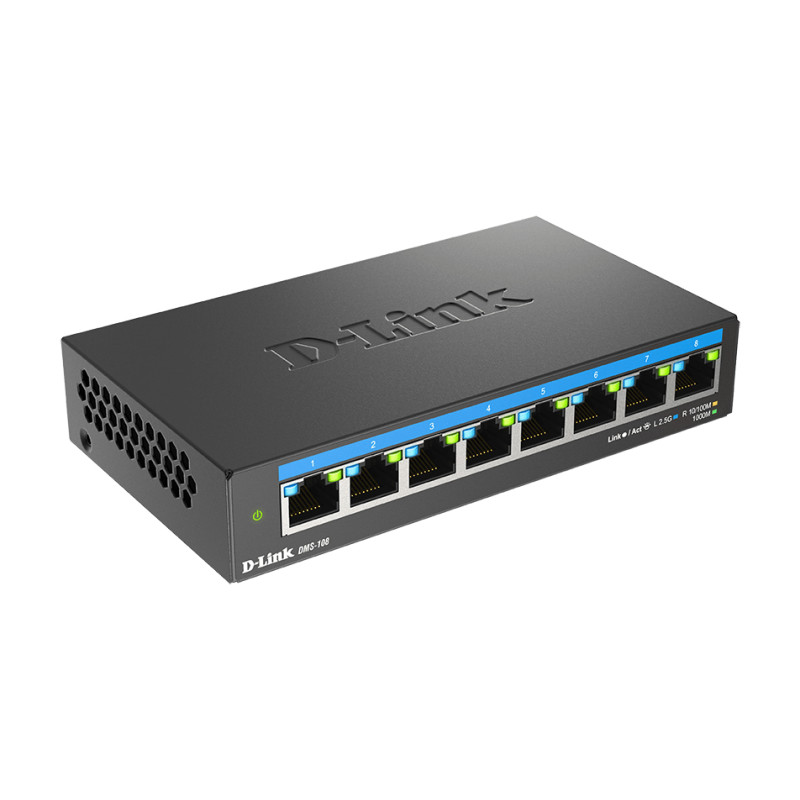

D-Link 8-Port 2.5G Multi-Gigabit Desktop Switch
  • D-Link 8-Port 2.5G Multi-Gigabit Desktop Switch
  • D-Link 8-Port 2.5G Multi-Gigabit Desktop Switch
  • D-Link 8-Port 2.5G Multi-Gigabit Desktop Switch
  • D-Link 8-Port 2.5G Multi-Gigabit Desktop Switch
  • D-Link 8-Port 2.5G Multi-Gigabit Desktop Switch
  • D-Link 8-Port 2.5G Multi-Gigabit Desktop Switch
  • D-Link 8-Port 2.5G Multi-Gigabit Desktop Switch
  • D-Link 8-Port 2.5G Multi-Gigabit Desktop Switch
  • D-Link 8-Port 2.5G Multi-Gigabit Desktop Switch
More ports. Multi-Gigabit Ethernet.
Maximise network throughput with 2.5Gbps Multi-Gigabit Ethernet on each port of this compact 8-port switch. Whether it’s to connect to your core or create a network between devices, now you can easily start sharing an internet connection, files, music, and video, or for gaming without bottlenecks.

2.5 Gigabit Ethernet
Save time transferring large files and improve sharing and productivity

Effortless multi-Gigabit networking
Easily upgrade or extend your home or small business network

Compact Metal Housing
Sturdy, compact metal housing with fanless design for silent operation

Energy Efficient Design
Automatic power saving features to reduce power usage

Plug-and-pay convenience.
The DMS-108 is a plug-and-play device that requires no configuration to get started. Plug-and-play makes it easy to instantly create a network without any technical knowledge.

Effortless traffic optimisation.
With 2.5 Gigabit transfer speeds from every port, you can rapidly transfer files between connected servers and network attached storage (NAS) to computers. The Quality of Service (QoS), and Flow Control features automatically prioritises important data for efficient delivery. And the IGMP Snooping function reduces unwanted multicast traffic so you can enjoy seamless video streaming and IPTV viewing experiences.

Designed for life, built to last.
The DMS-108 has a sturdy and compact metal housing to ensure the product can withstand wider operating temperatures by helping to dissipate heat and reduce stress on internal components.

Energy Saving.
The DMS-108 is designed with energy efficiency in mind. The fanless design eliminates a common point of failure and means the switch can be placed virtually anywhere and operate silently. The Link Status detection feature of the switch saves power by automatically powering down ports that are inactive or not connected, and it supports the IEEE 802.3az Energy-Efficient Ethernet standard.

Ready for Wi-Fi 6.
You can add a Wi-Fi 6 Access Point to your network to any of the 2.5 Gbps ports to maximise throughput and speed. Multi-Gigabit Ethernet eliminates potential bottlenecks with Wi-Fi 6 Access Points, allowing your network to take full advantage of the efficiency and speeds provided by Wi-Fi 6.
10G supportN
Auto MDI/MDI-XY
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports type2.5G Ethernet (100/1000/2500)
DC input voltage12 V
Depth82 mm
Flow control supportY
Forwarding rate29.76 Mpps
Heat dissipation29.3 BTU/h
Height28 mm
IGMP snoopingY
Input current1 A
LED indicatorsActivity,Link,Power
MAC address table4000 entries
Mean time between failures (MTBF)724033.96 h
Multicast supportY
Networking standardsIEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3x
Number of queues8
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Packet buffer memory8.1 MB
Power consumption (typical)8.586 W
Power sourceDC
Power supply includedY
Quality of Service (QoS) supportY
StackableY
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-10 - 70 °C
Store-and-forwardY
Switch layerL2
Switch typeUnmanaged
Switching capacity40 Gbit/s
Weight343 g
Width145 mm
MAC address auto-learning supportedY
Product colourBlack
FanlessY
Sustainability complianceY
2.5G Ethernet (copper) ports quantity8
Compliance certificatesBSMI,CE,Low Voltage Directive (LVD),RoHS

dms-108e.pdf

D-Link 8-Port 2.5G Multi-Gigabit Desktop Switch Data Sheet

Download (299.24k)
