NETGEAR MS305-100EUS
  • NETGEAR MS305-100EUS
  • NETGEAR MS305-100EUS
  • NETGEAR MS305-100EUS
  • NETGEAR MS305-100EUS
  • NETGEAR MS305-100EUS
  • NETGEAR MS305-100EUS
  • NETGEAR MS305-100EUS

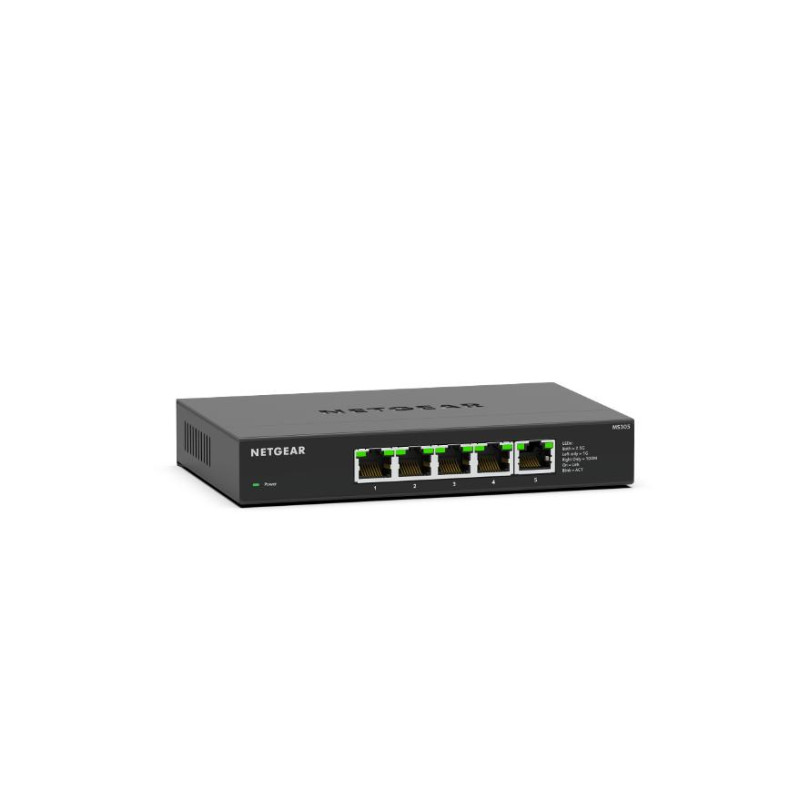

The NETGEAR 5-port Multi-Gigabit Unmanaged Switch, MS305, helps businesses cost-effectively expand their networks with multi-gig speeds. The MS305 Multi-Gigabit Ethernet switch comes with five (5) 2.5G ports in a metal case and can be placed on a desk or mounted on a wall with the included wall mount kit. This switch is energy efficient, built to last, and rigorously tested to provide the reliability businesses need. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.

RELIABLE PERFORMANCE
Superior network performance at non-blocking rate delivers true Multi-Gig speed with no compromise

ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected

PLUG-AND-PLAY
No software to install. No configuration needed. Zero maintenance required

SILENT OPERATION
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments

VERSATILE MOUNTING OPTIONS
Install your switch on your desktop, or mount it to your wall with the hardware provided in the box.
Auto MDI/MDI-XY
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports type2.5G Ethernet (100/1000/2500)
DC input voltage12 V
Depth101 mm
Ethernet LAN data rates100,1000,2500 Mbit/s
Forwarding rate3.72 Mpps
Full duplexY
Head-of-line (HOL) blockingY
Height29 mm
Housing materialMetal
Input current1 A
Input voltage12 V
Jumbo frames supportY
Latency (1 Gbps)2458 µs
LED indicatorsY
Mean time between failures (MTBF)1401743 h
Networking standardsIEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3x
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 90 %
Operating temperature (T-T)0 - 40 °C
Packet buffer memory1 MB
Power consumption (max)9.24 W
Power consumption (typical)4.6 W
Power over Ethernet (PoE)N
Power sourceDC
Power supply includedY
Quality of Service (QoS) supportY
Rack mountingN
StackableN
Storage relative humidity (H-H)0 - 95 %
Storage temperature (T-T)-20 - 70 °C
Switch typeUnmanaged
Wall mountableY
Weight480 g
Width158 mm
Jumbo frames9720
Cable length detectionY
Product colourBlack
FanlessY
Half duplexY
Compliance certificatesCCC,Low Voltage Directive (LVD)

ms305-100eus.pdf

NETGEAR MS305-100EUS Data Sheet

Download (423.53k)
