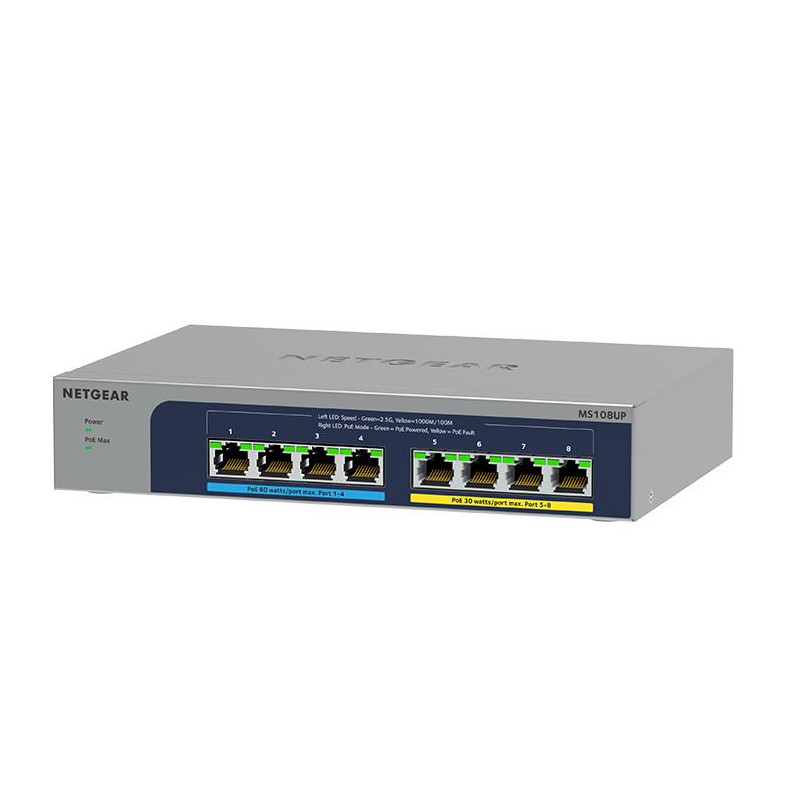

NETGEAR MS108UP
  • NETGEAR MS108UP
  • NETGEAR MS108UP
  • NETGEAR MS108UP
  • NETGEAR MS108UP
  • NETGEAR MS108UP
NETGEAR brings the first Unmanaged
Multi-Gigabit PoE++ switch MS108UP with 60Watts per port Ultra60 PoE++ technology, ideal for powerful PoE++ installations with PoE budgets up to 230W, a compact size, plug-and-play
installation, and reliable performance at affordable prices. The new model MS108UP supports 2.5 Gigabit speed connectivity and Power-Over-Ethernet (PoE) that can provide up to 60W/port. The new switch model can power devices such as VoIP phones, surveillance IP cameras, wireless access
points and many other applications. This new Unmanaged switch provides PoE Auto-Balance to help automatically balance the PoE power based on the device needs independent of PoE class detected. With the growing deployment of applications and an allin-one solution, providing multi-speed and high power to these applications would be ideal.
10G supportNo
Auto MDI/MDI-XY
Auto-sensingY
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports type2.5G Ethernet (100/1000/2500)
CertificationCB, CSA, CCC, BSMI, RCM
DC input voltage54 V
Depth140 mm
Electromagnetic compatibilityCE, FCC part 15 Class B, ISED, VCCI, KC, CCC, BSMI, RCM
Ethernet LAN data rates100,1000,2500 Mbit/s
Full duplexY
Head-of-line (HOL) blockingY
Heat dissipation923.49 BTU/h
Height40 mm
Housing materialMetal
Input current4.7 A
Jumbo frames supportY
Latency (1 Gbps)3.593 µs
LED indicatorsActivity,Link,PoE,Power
MAC address table16000 entries
Mean time between failures (MTBF)373643.7 h
Networking standardsIEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3bt,IEEE 802.3u,IEEE 802.3x
Number of VLANs64
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 90 %
Operating temperature (T-T)0 - 40 °C
Packet buffer memory1.5 MB
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity8
Power sourceDC
Power supply includedY
Quality of Service (QoS) supportY
Rack mountingNo
Storage temperature (T-T)-20 - 70 °C
Switch typeUnmanaged
Switching capacity40 Gbit/s
Total Power over Ethernet (PoE) budget230 W
VLAN supportY
Wall mountableY
Weight900 g
Width210 mm
Jumbo frames12000
Packet forwarding rate (1 Gbps)1488000 pps
FanlessY
Half duplexY
2.5G Ethernet (copper) ports quantity8
Harmonized System (HS) code85176990

ms108up-100eus.pdf

NETGEAR MS108UP Data Sheet

Download (362.84k)
