AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Basic switching RJ-45 Ethernet ports quantity | 24 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Depth | 169 mm |
Full duplex | Y |
Height | 43 mm |
Latency (1 Gbps) | 15 µs |
Latency (10-100 Mbps) | 35 µs |
MAC address table | 8000 entries |
Mean time between failures (MTBF) | 1016877 h |
Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
Operating relative humidity (H-H) | 0 - 90 % |
Operating temperature (T-T) | 0 - 50 °C |
Power consumption (max) | 12 W |
Power over Ethernet (PoE) | No |
Power source | AC |
Storage relative humidity (H-H) | 0 - 95 % |
Storage temperature (T-T) | -20 - 70 °C |
Switch type | Unmanaged |
Switching capacity | 48 Gbit/s |
Switching protocols | Ethernet |
Weight | 1470 g |
Width | 328 mm |
Compliance certificates | CE,Federal Communications Commission (FCC),ISED,UKCA,VCCI |

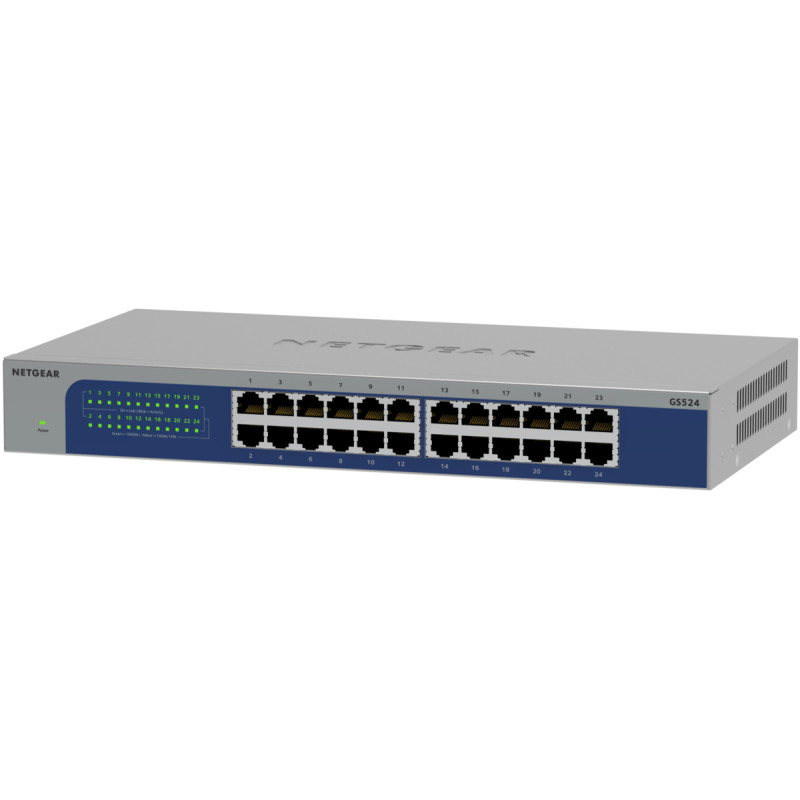

NETGEAR GS524-300EUS, 24-Port Gigabit Ethernet unmanaged Switch, Desktop Data Sheet
Download (364.55k)24-Port 100/1000 Mbps Gigabit Switch, 328 x 169 x 43 mm, 1.47 kg
gs524-300eus
Out of Stock
