Basic switching RJ-45 Ethernet ports quantity | 8 |
Compatible operating systems | Windows, Linux, Mac OS |
Copper ethernet cabling technology | 1000BASE-T,100BASE-TX,10BASE-T |
Data link protocols | Ethernet,Fast Ethernet, Gigabit Ethernet |
Data transfer rate | 1000 Mbit/s |
Dimensions (WxDxH) | 235.5 x 100.8 x 27 mm |
Drive device, buffer size | 0.032 MB |
Electromagnetic emissions | CE mark, commercial FCC Part 15 Class A, EN 55 022 (CISPR 22), Class A VCCI, Class A C-Tick |
Full duplex | Yes |
I/O ports | 8 auto speed(10/100/1000) sensing UTP RJ-45 |
Latency | (100 to 100 Mbps): 40 µ (max), (1000 to 1000 Mbps): 10 µ (max) |
LED indicators | Power |
MAC address table | 8000 entries |
Management | Unmanaged |
Maximum data transfer rate | 1 Gbit/s |
Minimum system requirements | - UTP Category 5 or better cables -Network card for each PC or server (e.g. GA302T) -Network software |
Mounting | Desktop |
Networking standards | IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u |
Operating relative humidity (H-H) | 10 - 90 % |
Operating relative humidity range | 10 - 90 % |
Operating temperature (T-T) | 0 - 40 °C |
Operating temperature range (T-T) | 0 - 40 °C |
Packet buffer memory | 0.032 MB |
PoE | No |
Ports quantity | 8 |
Power consumption (typical) | 14 W |
Power requirements | 5 V @ 2.8 A DC |
RJ45 Ports Qty | 8 |
Safety | UL (UL 1950), CUL, C-Tick |
Source data-sheet | Icecat.biz |
Stackable | No |
Switch Speed | Gigabit |
Switching capacity | 16 Gbit/s |
Weight | 760 g |

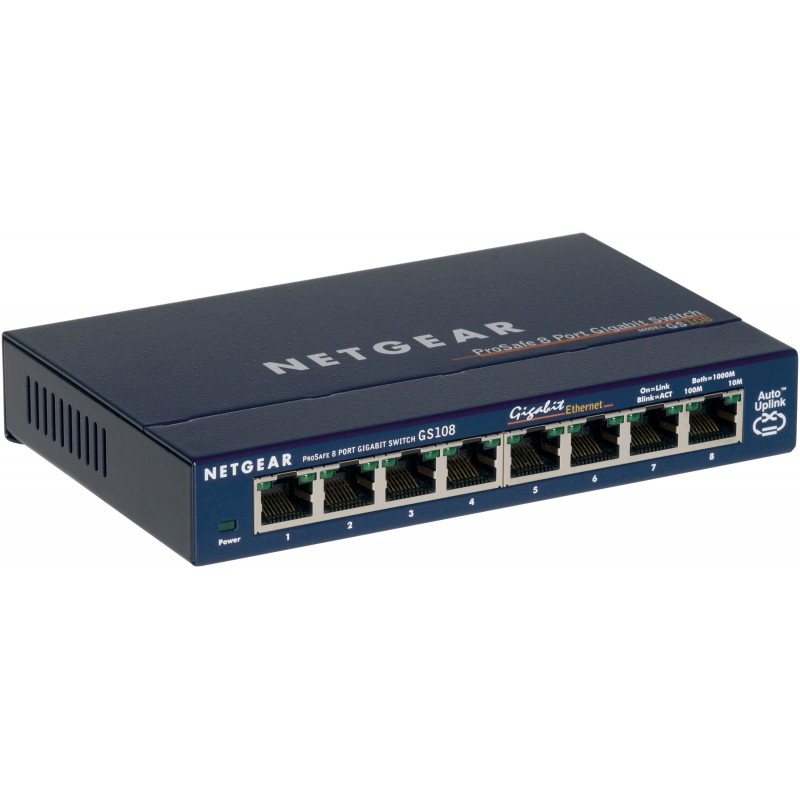

GS108 - 8 Port Gigabit Ethernet (10/100/1000) Network Switch
GS108UK
In Stock
