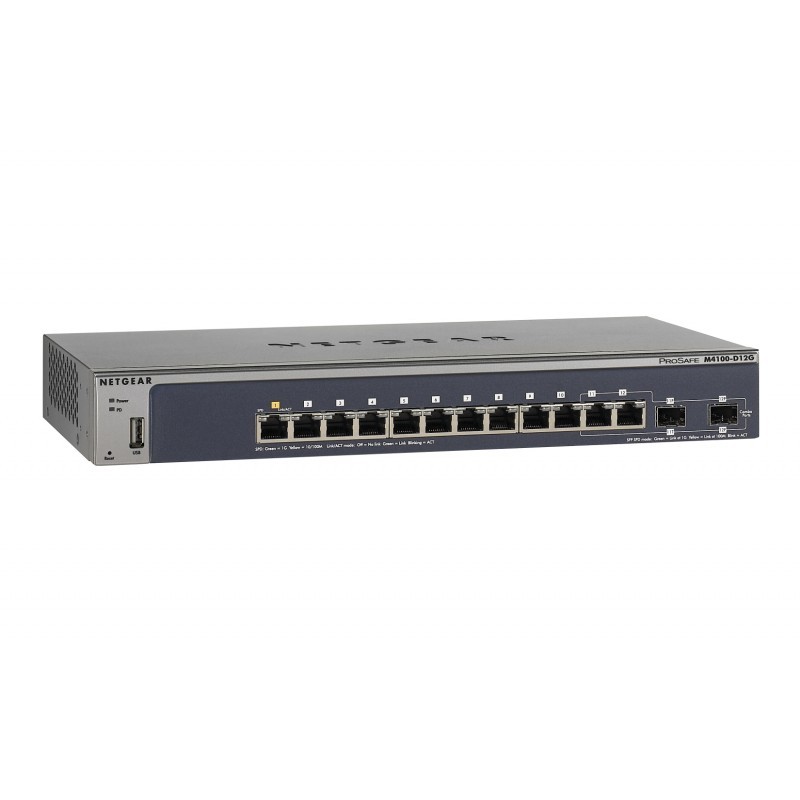

Netgear M4100-D12G
The NETGEAR Intelligent Edge M4100 series consists of 12 fully managed switches, ranging from 8-port Fast Ethernet to 50-port Gigabit Ethernet.

They are ideal for all organizations considering reliable, affordable and simple access layer switching with CLI, advanced scripting capabilities and Layer 3 routing.



As a cost-effective component of converged voice, video and data networking solutions, NETGEAR M4100 series delivers a secure edge in commercial buildings and campus LAN environments: PoE (802.3af) and PoE+ (802.3at) versions of M4100 series are perfect for Wireless access points, IP telephony and IP surveillance deployments.



Layer 2+ with static routing

- M4100 series comes with Port-based / VLAN-based / Subnet-based "static routing" Layer 2+ versions

- L3 fixed routes to the next hop towards the destination network are added to the routing table

- L3 routing is wire-speed in M4100 series hardware with 64 static routes (IPv4)



Engineered for convergence

- Automatic multi-vendor Voice over IP prioritization based on SIP, H323 and SCCP protocol

- Voice VLAN and LLDP-MED for automatic IP phones QoS and VLAN configuration

- Advanced classifier-based hardware for L2, L3, L4 security and prioritization

- Advanced Multicast filtering with IGMP and MLD snooping and querier modes



High-value performance and IPv6 ready

- 16K MAC addresses; up to 100Gbps switching fabric; 9K jumbo frames; Green Ethernet

- IPv4/IPv6 ingress traffic filtering (ACLs) and prioritization (QoS - DiffServ)



High availability and PoE/PoE+ full power capability

- Redundant power supply option for uninterruptible operation (RPS)

- External power supply option for PoE and PoE+ full power applications (EPS up to 1,440W)



Industry standard management

- Industry standard command line interface (CLI)

- Fully functional NETGEAR web interface (GUI)
10G supportNo
Basic switching RJ-45 Ethernet ports quantity12
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Case designportable
Colour of productBlue,Grey
DC-in jackYes
Depth169 mm
Heat dissipation64 BTU/h
Height43.2 mm
MAC address table16000 entries
ManualYes
Mean time between failures (MTBF)214142 h
Multicast supportYes
Networking standardsIEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3z
Non-operating altitude0 - 3000 m
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 90 %
Operating temperature (T-T)0 - 50 °C
Power consumption (typical)18.8 W
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) supportYes
Quality of Service (QoS) supportYes
Quick start guideYes
Rack mountingYes
Storage relative humidity (H-H)0 - 95 %
Storage temperature (T-T)-20 - 70 °C
Switch layerL2+
Switch typeManaged
Switching capacity24 Gbit/s
Throughput17.857 Mpps
Total Power over Ethernet (PoE) budget30 W
USB 2.0 ports quantity1
User guideYes
VLAN supportYes
Weight1330 g
Width328 mm
SFP module slots quantity2

Similar products

  • Netgear M4300-8X8F
    Netgear M4300-8X8F
  • Netgear GSM7248-200EUS
    Netgear GSM7248-200EUS
  • Netgear M4300-12X12F
    Netgear M4300-12X12F
  • Cat5e CCS 4000 Series - Vertical Outlets
    Cat5e CCS 4000 Series - Vertical Outlets

Netgear M4100-D12G

L2+ Switch, Managed, 12x10/100/1000, 2xSFP, black

GSM5212-100NES

In Stock

£220.13
£183.44 Ex VAT.
