AC input frequency | 50/60 Hz |
AC input voltage | 100-240 V |
Backup features | Cloud,iSCSI LUN |
Backup function | Y |
Built-in display | Y |
Certification | FCC, CE, VCCI |
Chassis type | Desktop |
Colour of product | Black |
Cooling type | active |
Depth | 239 mm |
Device class | Small & Medium Business |
DHCP client | Y |
Display type | LCD |
Embedded options available | Y |
eSATA ports quantity | 1 |
Ethernet LAN | Y |
Ethernet LAN (RJ-45) ports | 2 |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Execute Disable Bit | Y |
Fan diameter | 120 mm |
Graphics & IMC lithography | 22 nm |
Height | 194 mm |
Hot-swap drive bays | Y |
Installed storage drive type | HDD |
Intel 64 | Y |
Intel VT-x with Extended Page Tables (EPT) | Y |
iSCSI support | Y |
Jumbo frames support | Y |
LED indicators | Y |
Link aggregation | Y |
Linux operating systems supported | Y |
Mac compatibility | Y |
Mac operating systems supported | Y |
Maximum number of PCI Express lanes | 8 |
Number of fans | 1 fan(s) |
Number of storage drives installed | 4 |
Number of storage drives supported | 4 |
Number of users | 8192 user(s) |
On/off switch | Y |
Operating relative humidity (H-H) | 5 - 95 % |
Operating system installed | ReadyNAS OS |
Operating system version | 6 |
Operating temperature (T-T) | 0 - 45 °C |
PCI Express slots version | 2.0 |
Physical Address Extension (PAE) | Y |
Power consumption (off) | 0.4 W |
Power consumption (typical) | 43.09 W |
Processor boost frequency | 2 GHz |
Processor cache | 1 MB |
Processor code | SR1S8 |
Processor cores | 2 |
Processor family | Intel Atom |
Processor frequency | 1.7 GHz |
Processor lithography | 22 nm |
Processor model | C2338 |
Processor operating modes | 32-bit,64-bit |
Processor socket | BGA 1283 |
Processor threads | 2 |
RAID levels | 0,1,5,6,10,JBOD |
RAID support | Y |
RoHS compliance | Y |
Security algorithms | 256-bit AES |
Server operating systems supported | Windows Server 2008,Windows Server 2012 R2 |
Stepping | B0 |
Storage drive capacity | 2000 GB |
Storage drive size | 2.5/3.5 " |
Storage drives installed | Y |
Supported file systems | FAT32,HFS+,NTFS,ext3,ext4 |
Thermal Design Power (TDP) | 7 W |
Total installed storage capacity | 8000 GB |
Type | NAS |
UART | Y |
USB port | Y |
Weight | 3950 g |
Wi-Fi | No |
Width | 185 mm |
Windows operating systems supported | Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Wind |
Processor cache type | L3 |
Maximum internal memory supported by processor | 16 GB |
Memory types supported by processor | DDR3-SDRAM,DDR3L-SDRAM |
Memory channels supported by processor | single |
ECC supported by processor | Y |
Intel Virtualization Technology (VT-x) | Y |
Processor package size | 34 mm |
Built-in UPnP AV media server | Y |
Power consumption (sleep) | 4.4 W |
USB 3.0 (3.1 Gen 1) Type-A ports quantity | 2 |
Conflict Free processor | Y |
S.M.A.R.T. support | Y |
Digital Living Network Alliance (DLNA) certified | Y |
Intel® AES New Instructions (Intel® AES-NI) | Y |
Intel® Hyper Threading Technology (Intel® HT Technology) | N |
Intel® Turbo Boost Technology | 2.0 |
Processor ARK ID | 77976 |
Intel QuickAssist Technology | Y |
RAM capacity | 2 GB |
RAM type | DDR4 |

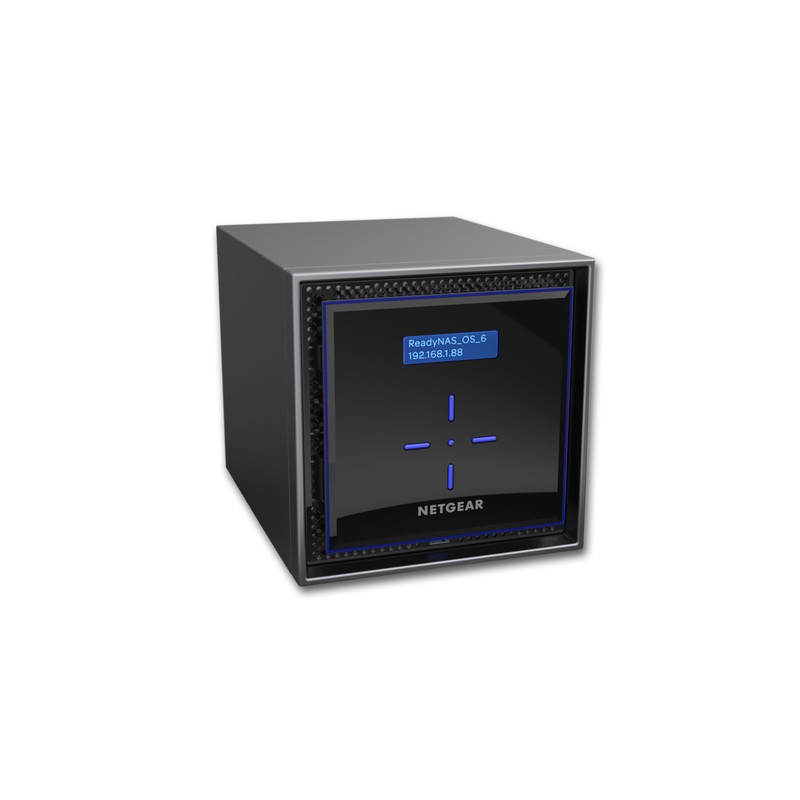

4-bay, Desktop, 4x 2TB Enterprise Dual-Core Intel C-3338 Atom, 2GB DDR4, 2x Gigabit Ports
RN424E2-100NES
