AC input frequency | 50/60 Hz |
AC input voltage | 100-240 V |
Backup features | Cloud |
Backup function | Yes |
Certification | FCC B, CE B, RoHS, VCCI B |
Chassis type | Rack (1U) |
Colour of product | Black |
Depth | 486 mm |
Device class | Large Enterprise Business |
Embedded options available | Yes |
eSATA ports quantity | 2 |
Ethernet LAN | Yes |
Ethernet LAN (RJ-45) ports | 4 |
Ethernet LAN data rates | 1000 Mbit/s |
Execute Disable Bit | No |
Fan diameter | 40 mm |
Flash memory | 128 MB |
Graphics & IMC lithography | 22 nm |
Height | 44 mm |
Hot-swap drive bays | Yes |
Installed storage drive type | No |
Intel 64 | Yes |
Intel VT-x with Extended Page Tables (EPT) | Yes |
Internal RAM | 4 GB |
iSCSI support | Yes |
Jumbo frames support | Yes |
L3 cache | 2 MB |
LED indicators | Activity,LAN,Power |
Link aggregation | Yes |
Maximum number of PCI Express lanes | 16 |
Maximum supported storage capacity | 32 TB |
Noise level | 28 dB |
Number of fans | 3 fan(s) |
Number of power supply units | 1 |
Number of storage drives supported | 4 |
Operating relative humidity (H-H) | 5 - 95 % |
Operating temperature (T-T) | 0 - 40 °C |
PCI Express slots version | 2.0 |
Physical Address Extension (PAE) | Yes |
Power consumption (off) | 0.3 W |
Power consumption (typical) | 55 W |
Power supply location | Built-in |
Power supply unit (PSU) capacity | 180 W |
Processor cache | 2 MB |
Processor code | SR1CZ |
Processor cores | 4 |
Processor family | Intel Atom |
Processor frequency | 2.4 GHz |
Processor lithography | 22 nm |
Processor model | C2558 |
Processor operating modes | 32-bit,64-bit |
Processor socket | BGA1283 |
Processor threads | 4 |
RAID levels | 0,1,5,6,10 |
RAID support | Yes |
Security algorithms | 256-bit AES |
Stepping | B0 |
Storage drive interface | Serial ATA |
Storage drive size | 2.5/3.5 " |
Storage drives installed | No |
Supported file systems | FAT32,HFS+,NTFS,ext3,ext4 |
Supported network protocols | TC P/I P, IPv4, IPv6 |
Supported storage drive types | HDD,SSD |
Thermal Design Power (TDP) | 15 W |
Type | NAS |
UART | Yes |
USB 2.0 ports quantity | 1 |
USB port | Yes |
Wake-on-LAN ready | Yes |
Weight | 5210 g |
Wi-Fi | No |
Width | 406 mm |
Processor cache type | L3 |
Maximum internal memory supported by processor | 64 GB |
Memory types supported by processor | DDR3-SDRAM,DDR3L-SDRAM |
Memory channels supported by processor | Dual |
ECC supported by processor | Yes |
Intel Virtualization Technology (VT-x) | Yes |
Processor package size | 34 mm |
USB 3.0 (3.1 Gen 1) Type-A ports quantity | 2 |
Conflict Free processor | No |
S.M.A.R.T. support | Yes |
Intel® AES New Instructions (Intel® AES-NI) | Yes |
Intel® Hyper Threading Technology (Intel® HT Technology) | No |
Intel® Turbo Boost Technology | No |
Processor ARK ID | 77983 |
Intel QuickAssist Technology | Yes |
Load balancing system | Yes |
Network Time Protocol (NTP) client | Yes |

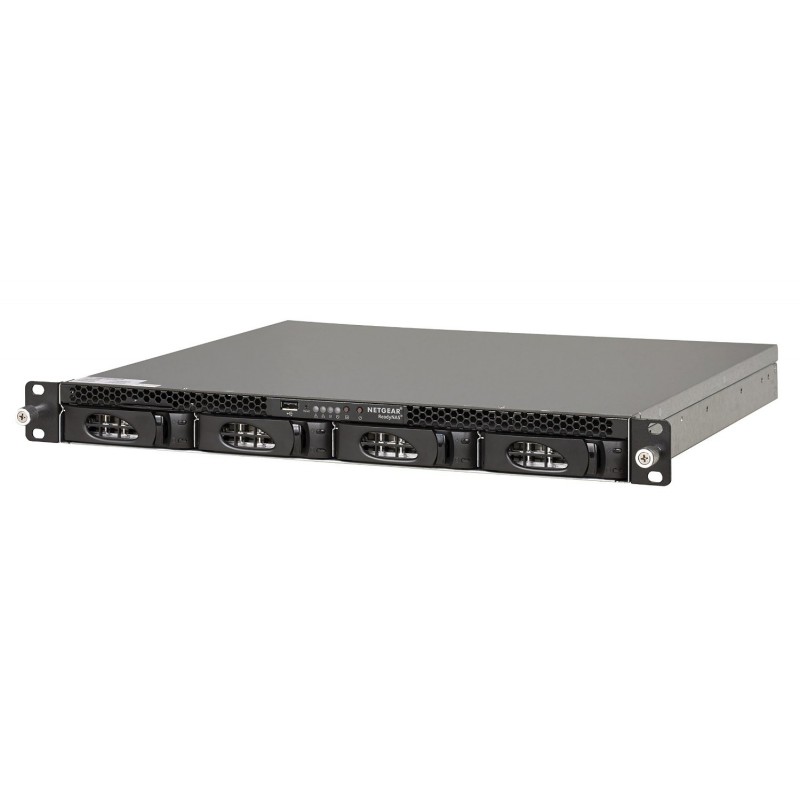

Intel Atom C2558 Quad Core 2.4GHz with QuickAssist, 4GB ECC UDIMM, Gigabit LAN, eSATA, USB, 180W, Diskless
RN3138-100NES
Out of Stock
