HP 5900AF-48XG-4QSFP F-B Bundle
  • HP 5900AF-48XG-4QSFP F-B Bundle
  • HP 5900AF-48XG-4QSFP F-B Bundle
  • HP 5900AF-48XG-4QSFP F-B Bundle
  • HP 5900AF-48XG-4QSFP F-B Bundle

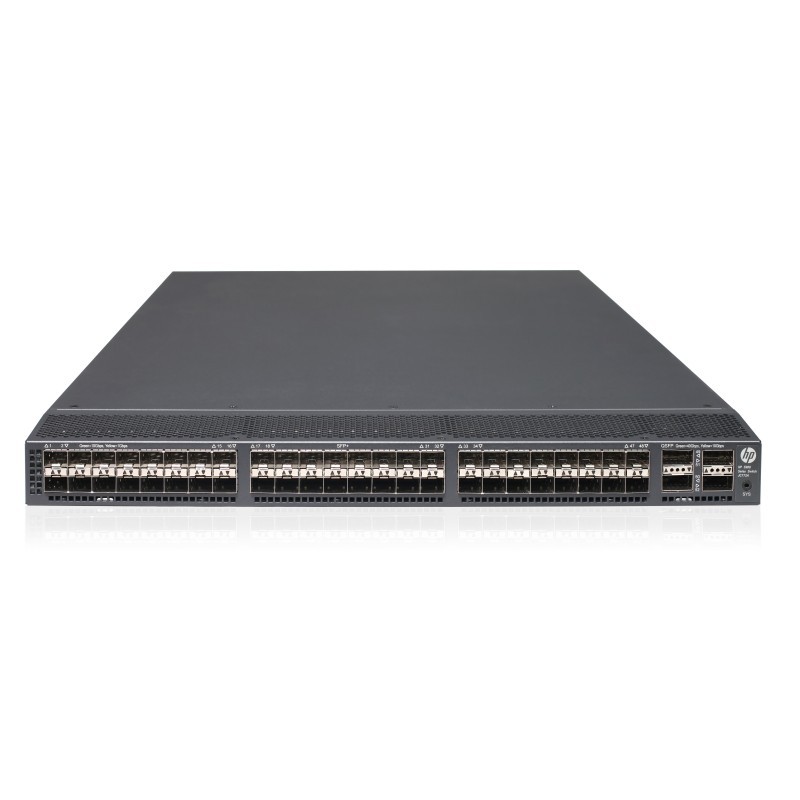

The HP 5900 Switch Series are low-latency 1/10GbE data center top-of-rack (ToR) switches. Perfect for deployment at server access layer in large and medium sized enterprises.



These switches may also be used in campus core/distribution layers where higher performance 40GbE connectivity is required with 10GbE links. Virtualized applications and server-to-server traffic require ToR switches that meet the needs for higher-performance server connectivity, convergence, virtual environment support, and low-latency.



Optional Intelligent Management Center (IMC) Software Platform for network management.



What's new

- High 1/10GbE port density with ultrafast latency for demanding applications.

- 10/100/1000/10000BASE-T and fiber support for data center deployments.

- IRF support of nine switches simplifies management by up to 88%.

- OpenFlow and SDN automate manual tasks and speed service delivery.

- One license for all OS features, including L3 and FCoE support.



Features



Ultra-low-latency and Wire Speed for Demanding Applications

- The HP 5900 Switch Series provides high density 10/100/100/10000BASE-T, or fiber ports for high-performance and flexible deployments

- All ports support full L2/L3 features, IPv4/IPv6 dual stack, OpenFlow and TRILL for high scalability and Software-defined Networking (SDN) support.

- Intelligent Resilient Fabric (IRF) for simpler management, faster re-convergence and business agility.



High-Performance Data Center Switching

- The HP 5900 Switch Series delivers 1.28 Tbps switching capacity for the most demanding applications.

- Supports up to 952 MPPS throughput for data intensive environments.

- Low latency, under a 1.5 us 10GbE latency, provides increased performance.

- Four 40GbE QSFP+ ports for blazing fast uplinks.



Increased Resilience with Comware

- The HP 5900 Switch Series delivers IRF < 50 msec convergence time enabling faster application response times.

- In Service Software Update (ISSU) enables high availability with updates accomplished without a reboot or power cycle, and is performed in the background.



Simplicity and Lower TCO

- The HP 5900 Switch Series simplifies switch management by up to 88% with IRF.

- No extra hidden cost with simple one license per switch for all operating system features.

- Automate tedious tasks with SDN and reclaim wasted resources.
10G supportYes
AC input frequency50/60 Hz
AC input voltage100-240 V
Access Control List (ACL)Yes
Broadcast storm controlYes
Colour of productGrey
Console portRJ-45
Depth659.9 mm
DHCP clientYes
DHCP serverYes
Flash memory512 MB
Flow control supportYes
Form factor1U
Height43.7 mm
IGMP snoopingYes
Internal memory2048 MB
IP routingYes
Latency (10 Gbps)1.5 µs
Link aggregationYes
MAC address table128000 entries
Memory typeSDRAM
Multicast supportYes
Networking standardsIEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3ae
Operating relative humidity (H-H)10 - 90 %
Packet buffer memory9 MB
Port mirroringYes
Power consumption (typical)260 W
Power over Ethernet (PoE)No
Power over Ethernet (PoE) supportNo
Power supply includedYes
Quality of Service (QoS) supportYes
Rack mountingYes
Routing entries16000
Spanning tree protocolYes
SSH/SSL supportYes
StackableYes
Switch layerL3
Switch typeManaged
Switching capacity1280 Gbit/s
Throughput952 Mpps
VLAN supportYes
Weight13000 g
Width439.9 mm
