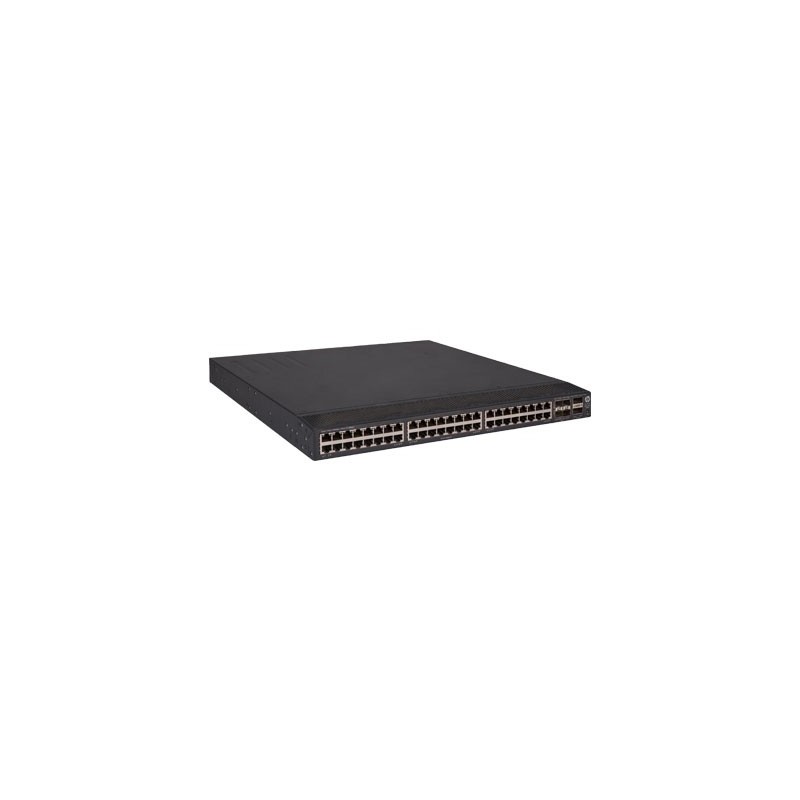

HP FlexFabric 5700-48G-4XG-2QSFP+ Switch
The HP FlexFabric 5700 Switch Series provides an open door for expanding your enterprise network by adding capacity with local switching and L2/L3 support. Take advantage of IRF enhancements for spine/leaf configurations, to simplify network management and expand server connectivity.



Resilience and ease of management come hand–in-hand with the FlexFabric 5700. While IRF reduces management complexities by up to 88%, it also delivers <50msec convergence time.



You can rely on the FlexFabric 5700 to lower TCO with up to a 25% lower cost than competing devices.



Features

Expand Your Data Center Network with Confidence



The HP FlexFabric 5700 Switch Series expands your enterprise network by adding local switching capacity for better scalability, so that you can support more customers.



Up to thirty (30) HP FlexFabric switches can be added to the network and managed by one Controlling Bridge (CB) switch improving server connectivity. (future)



The FlexFabric 5700 Switch Series gives you choices that fit your budget and environment by offering 1/10GbE ports supporting SFP and BASE-T with 10/40GbE uplinks.



High-Performance Data Center Switching



The HP FlexFabric 5700 Switch Series delivers 960Gbps switching capacity for the most demanding applications.



Provides local switching and participates in the network unlike competing port multiplexers.



Low latency, under 1.5us 10GbE latency, provides improved throughput and fewer lost packets.



Business Agility and Resilience with Comware 7



The HP FlexFabric 5700 Switch Series delivers IRF <50msec convergence time enabling faster application response time.



The 5700 Switch Series supports spine/leaf IRF to enhance network agility with ECMP and faster convergence.



In Service Software Update (ISSU) enables high availability with updates accomplished without a reboot or power cycle, in the background.



Simplicity and Lower TCO



The HP FlexFabric 5700 Switch Series simplifies switch management by up to 88% with IRF.



No extra hidden costs with simple one license per switch for all OS features.



Up to 25% lower cost than competing port multiplexers for lower TCO.



Automate tedious tasks with software defined network (SDN) and reclaim wasted resources.
AC input frequency50/60 Hz
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Colour of productBlack
Depth460 mm
Dimensions (WxDxH)439.9 x 460 x 43.7 mm
Flash memory512 MB
Height43.7 mm
I/O ports48 RJ-45 autosensing 10/100/1000 ports; 4 fixed 1000/10000 SFP+ ports; 2 QSFP+; Included
Input voltage100 - 240 VAC; -48 to -60 VDC (depending on power supply chosen)
Internal memory2048 MB
Latency10 Gb/s Latency: &lt; 1.5 µs
Latency (10 Gbps)1.5 µs
Management platformIMC - Intelligent Management Center; command-line interface; out-of-band management; SNMP Manager; Telnet; FTP
Memory and processor512 MB flash; packet buffer size: 9 MB; 2 GB SDRAM
Memory typeSDRAM
Operating relative humidity range10 to 90 %
Operating temperature range (T-T)0 - 45 °C
Packet buffer memory9 MB
Power consumption (typical)175W
Power over Ethernet (PoE)No
Power supply includedNo
Rack mountingYes
StackableYes
Switch layerL3
Switch typeManaged
Switching capacity336 Gbit/s
Throughput250 Mpps
Weight10000 g
Width439.9 mm
Installed SFP+ modules quantity4
