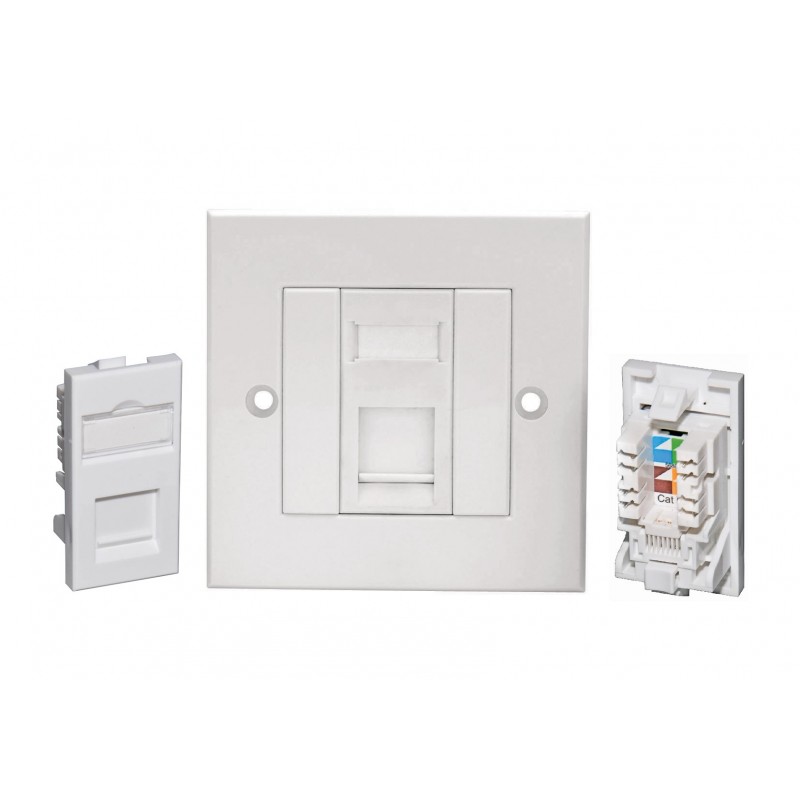

The Connectix Enhanced Category 6 way loaded faceplate consists of 1 or two modules in loaded in a singlegang faceplate or 4 modules loaded in a doublegang faceplate.
- Ready assembled outlet, ready for installation.
- Exceeds Enhanced Cat6 specification when used alongside our cable and patch panels
Details:
Module Details
The Connectix Category 6 Compact Module is designed to provide one of the shallowest wall outlets on the market. They are the ideal solution wherever back-box depth is a problem.
The attractive high gloss finish and easy to use labelling system is identical to all other Connectix Cabling Systems Modules, making them interchangeable in most applications.
Category 6 compact modules can be fitted into single or dual gang Euro faceplates and can be combined with quarter blanks and/or voice modules to provide the required configuration.
Connectix Category 6 Modules are fully compliant with the ANSI/TIA Category 6 Standard. When used in conjunction with Connectix Category 6 Patch Panels and UTP Cable the user will get a link performance exceeding the Category 6 requirements.
Features:
- Suitable for Gigabit Ethernet applications
- Shallow design requires minimal back-box depth
- Interchangeable with all other Euro modules and quarter blanks
- Fits all standard Euro faceplates
- Individually QA tested
Specification:
- Width - 25mm
- Depth - 21mm
- Height - 50mm
- Back-box Depth - Minimum 15mm recommended
- Material - Polycarbonate/ABS thermoplastic resin, with grade UL94 V0 at 1.5mm flame retardency
- Finish - High gloss
- IDC Labels - Individual colour coded to T568B
- IDC Blocks - 4 way industry standard IDC blocks
- Conforms to - ANSI/TIA-568-C Category 6 Specification
| Shielded | No |
| Specification | Cat6 |
| Termination | Krone Style IDC PunchDown |
Guy B - 29/02/2024
Nice product. Easily wired
Jake C - 22/11/2023
It does what it needs to do. very pleased.
Liam G - 30/12/2022
These worked fine, just don't punch down write they're clipped in else you will snap the retaining clips.
David M - 06/11/2022
Great quality outlets
AARON m - 02/02/2022
Good product easy to fit
AARON m - 02/02/2022
Good product easy to fit
stuart r - 17/03/2021
Do the job there intended to do.
Ritchie C - 11/01/2021
Haven't used yet but seems good
Brian H - 23/12/2020
easy to install
Terry S - 17/12/2020
It's a faceplate, what more can I say. It works
Oliver P - 12/12/2020
Pretty much as described. Worked perfectly and couldn't ask for anything better. Solid and reliable connection and a solid faceplate too.
stuart k - 29/11/2020
It works. Easy install. Not a lot bad to go wrong with this.
Rolf T - 13/11/2020
Not installed yet, but quality seems fine
Rolf T - 13/11/2020
As above
Jon S - 22/01/2020
Worked fine and look great.
Stuart H - 27/11/2019
Saves ordering all the bits separately!
