Switch and meter outlets & IT equipment across A and B feed: Combines both Switched and Metered Outlet functionality together in 1 ePDU



ePDU G3 Managed models allow complete lights-out control and metering of devices including devices powered across multiple ePDUs. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.
AC outlet typesC13 coupler,C19 coupler
AC outlets quantity32 AC outlet(s)
Cable length3 m
CertificationCB, CE, EN 60950-1:2006/A11:2009/A1:2010/A12:2011\nEN 61000-6-2:2005\nEN 50581 : 2012, REACH, WEEE\nISO 9001:2008 / ISO 14001:2004
Colour of productBlack
Dimensions (WxDxH)52 x 53 x 1829 mm
DisplayLCD
Ethernet LAN (RJ-45) ports1
Firmware upgradeableY
Input frequency50 Hz
LED indicatorsY
Management protocolsSNMP, Telnet
Maximum current32 A
Maximum power7000 W
Mountingvertical
Nominal input voltage230 V
Output connections28 x C13 & 4 x C19
Package depth214 mm
Package height1955 mm
Package width200 mm
PDU typesManaged
Power plugIEC 60309
Rack mounting0U
RoHS complianceY
Serial ports quantity1
Supported network protocolsHTTP, HTTPS, SSL, FTP, SMTP, DNS, DHCP, LDAP, RADIUS
TypeSingle-phase
Weight6300 g
Firmware upgradeable viaNetwork,USB

EMAB71.pdf

Eaton EMAB71 Data Sheet

Download (2.09M)

Similar products

  • Eaton EMIB04
    Eaton EMIB04
  • Eaton EMIB03
    Eaton EMIB03
  • Eaton EMIB00
    Eaton EMIB00
  • Eaton EBAB22
    Eaton EBAB22
  • Eaton EBAB19
    Eaton EBAB19

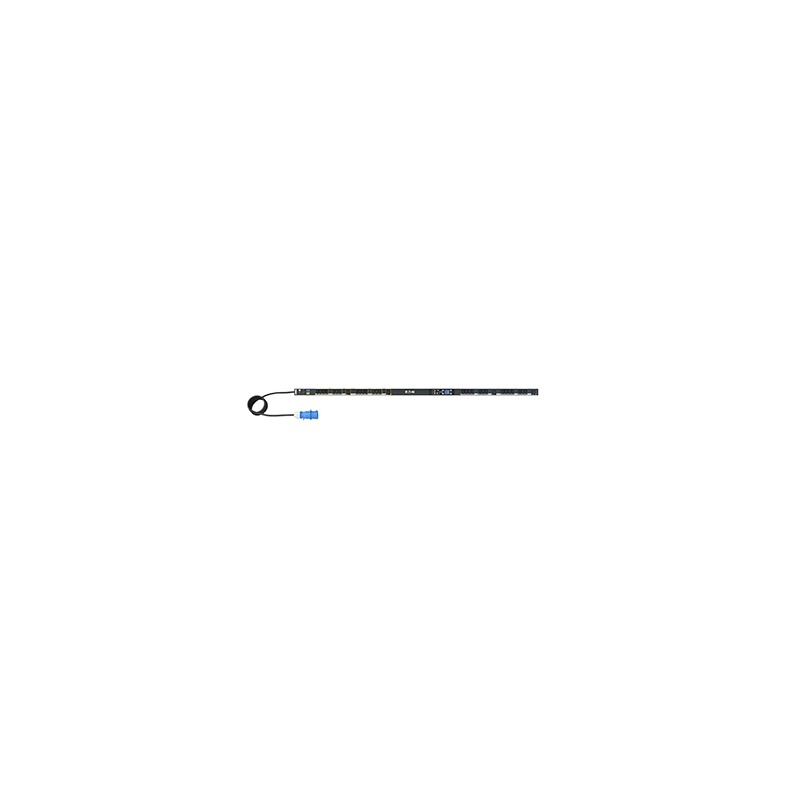

Eaton EMAB71

ePDU G3 Managed, 28 x C13 & 4 x C19 Out, IEC 60309 32A In, 230V, 0U

EMAB71

Out of Stock

£1,670.04
£1,391.70 Ex VAT.
