Switch outlets & IT equipment across A and B feed + meter the input and branch circuits



ePDU G3 Switched models allow lights-out control of devices including switching devices powered across multiple ePDUs. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.
AC outlet typesC13 coupler
AC outlets quantity16 AC outlet(s)
Cable length3 m
CertificationCB, CE, EN 60950-1:2006/A11:2009/A1:2010/A12:2011\nEN 61000-6-2:2005\nEN 50581 : 2012, REACH, WEEE\nISO 9001:2008 / ISO 14001:2004
Colour of productBlack
Dimensions (WxDxH)445 x 225 x 87 mm
DisplayLCD
Ethernet LAN (RJ-45) ports1
Firmware upgradeableY
Input frequency50 Hz
LED indicatorsY
Management protocolsSNMP, Telnet
Maximum current32 A
Maximum power7000 W
MountingHorizontal
Nominal input voltage230 V
Package depth570 mm
Package height195 mm
Package weight7500 g
Package width375 mm
PDU typesSwitched
Power plugIEC 60309
Rack mounting2u
RoHS complianceY
Serial ports quantity1
Supported network protocolsHTTP, HTTPS, SSL, FTP, SMTP, DNS, DHCP, LDAP, RADIUS
TypeSingle-phase
Weight5300 g
Firmware upgradeable viaNetwork,USB

ESWH84.pdf

Eaton ESWH84 Data Sheet

Download (2.09M)

Similar products

  • Eaton EMIB04
    Eaton EMIB04
  • Eaton EMIB03
    Eaton EMIB03
  • Eaton EMIB00
    Eaton EMIB00
  • Eaton EBAB22
    Eaton EBAB22
  • Eaton EBAB19
    Eaton EBAB19

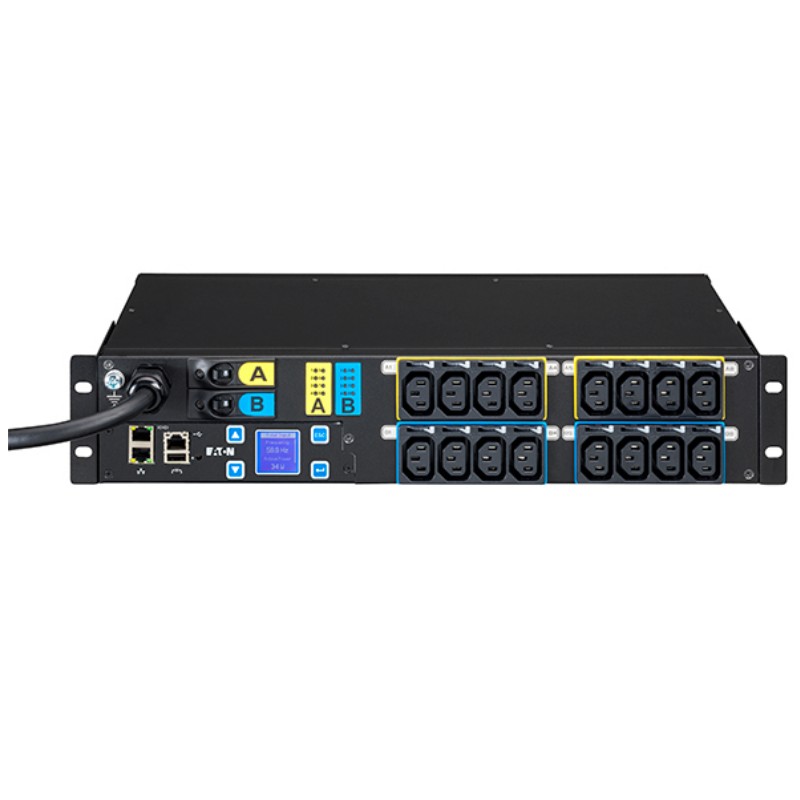

Eaton ESWH84

G3 Switched ePDU, 16 x C13 Out, 309-32A In, 230V, 2U

ESWH84

Out of Stock

£1,027.12
£855.94 Ex VAT.
