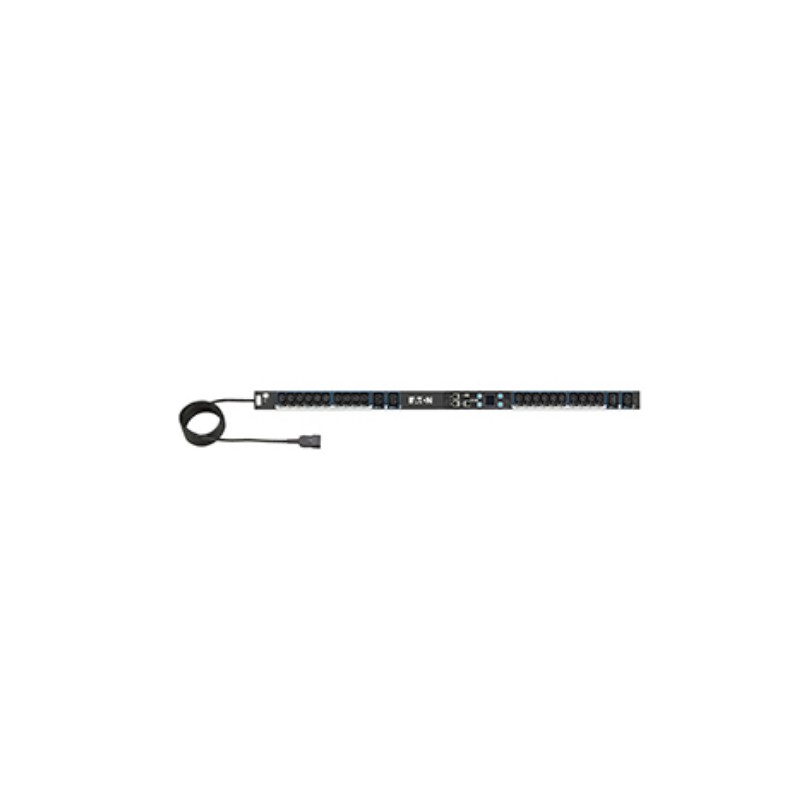

ePDU G3 Metered Input models allow metering to the branch and phase level for effective load balancing, with no switching. Models include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.
AC outlet typesC13 coupler,C19 coupler
AC outlets quantity24 AC outlet(s)
Cable length3 m
CertificationCB, CE, EN 60950-1:2006/A11:2009/A1:2010/A12:2011\nIEC 60950-1, EN 61000-6-2:2005\nEN 61000-6-4:2007+A1:2011\nEN 50581 : 2012, REACH, WEEE\nISO 9001:2008 / ISO 14001:2004
Colour of productBlack
Dimensions (WxDxH)52 x 53 x 1070 mm
DisplayLCD
Ethernet LAN (RJ-45) ports1
Firmware upgradeableY
Input frequency50 Hz
LED indicatorsY
Management protocolsSNMP, Telnet
Maximum current16 A
Maximum power4000 W
Mountingvertical
Nominal input voltage230 V
Output connections20 x C13 & 4 x C19
Package depth214 mm
Package height1200 mm
Package width200 mm
PDU typesMetered
Power plugC20 coupler
Rack mounting0U
RoHS complianceY
Serial ports quantity1
Supported network protocolsHTTP, HTTPS, SSL, FTP, SMTP, DNS, DHCP, LDAP, RADIUS
TypeSingle-phase
Weight2700 g
Firmware upgradeable viaNetwork,USB

EMIB22.pdf

Eaton EMIB22 Data Sheet

Download (2.09M)

Similar products

  • Eaton EMIB04
    Eaton EMIB04
  • Eaton EMIB03
    Eaton EMIB03
  • Eaton EMIB00
    Eaton EMIB00
  • Eaton EBAB22
    Eaton EBAB22
  • Eaton EBAB19
    Eaton EBAB19

Eaton EMIB22

ePDU G3 Metered Input, 20 x C13 & 4 x C19 Out, C20 In, 230V, 0U

EMIB22

In Stock

£685.41
£571.18 Ex VAT.
