Meter the Input, branch, individual outlets & IT equipment across A and B feed



ePDU G3 Metered Outlet models allow device level metering over multiple power feeds, and includes kWh, peak power and current draw. Clearly view and understand the consumption of individual devices powered over A and B feeds and see available power. Metered Outlet units have no switching. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.
AC outlet typesC13 coupler
AC outlets quantity16
Cable length3.0 m
CertificationCB, CE, EN 60950-1:2006/A11:2009/A1:2010/A12:2011\nIEC 60950-1(ed.2), IEC 60950-1(ed.2);am1 EN 55022:2010\nEN 55024:2010\nISO 9001:2008 / ISO 14001:2004
Colour of productBlack
Dimensions (WxDxH)53 x 1154 x 52 mm
DisplayLCD
Input frequency50 Hz
LED indicatorsYes
Maximum current10 A
Mountingvertical
Nominal input voltage230 V
PDU typesMetered
Power plugC14 coupler
Rack mounting0U
RoHS complianceYes

Similar products

  • Eaton EMIB04
    Eaton EMIB04
  • Eaton EMIB03
    Eaton EMIB03
  • Eaton EMIB00
    Eaton EMIB00
  • Eaton EBAB22
    Eaton EBAB22
  • Eaton EBAB19
    Eaton EBAB19

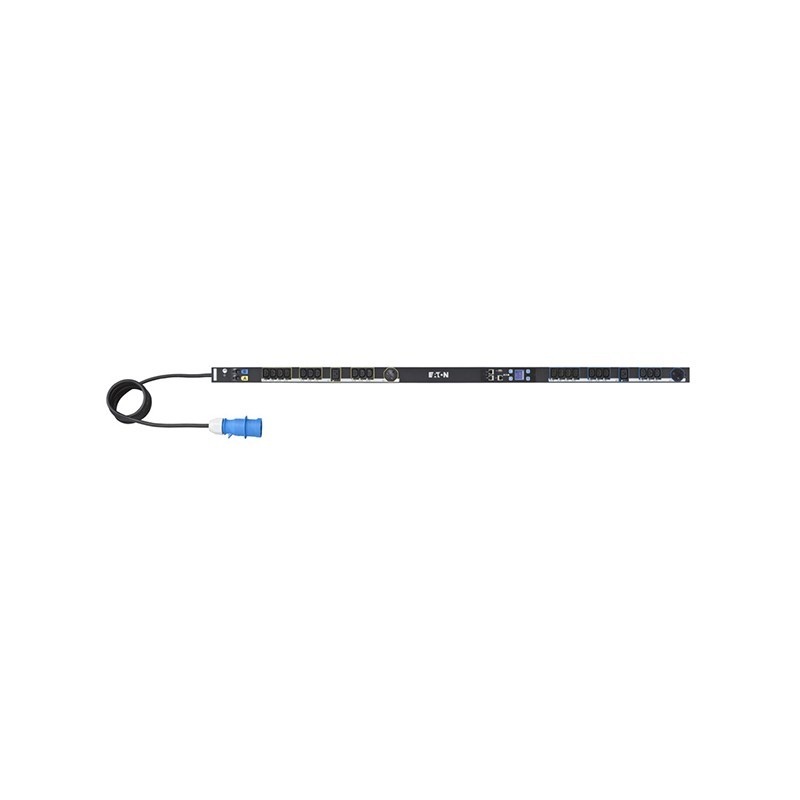

Eaton EMOB03

ePDU G3 Metered Outlet, C14 In, 16 x C13 Out, 0U

EMOB03

Out of Stock

£974.65
£812.21 Ex VAT.
