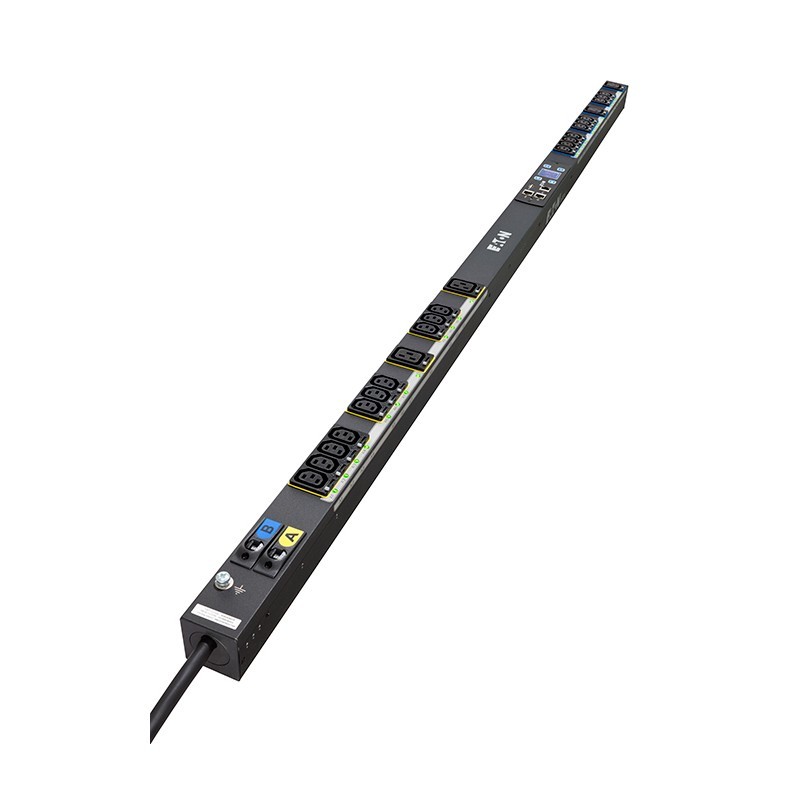

Eaton EMAB33
  • Eaton EMAB33
  • Eaton EMAB33
  • Eaton EMAB33
Switch and meter outlets & IT equipment across A and B feed: Combines both Switched and Metered Outlet functionality together in 1 ePDU



ePDU G3 Managed models allow complete lights-out control and metering of devices including devices powered across multiple ePDUs. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.
AC outlet typesC13 coupler, C19 coupler
AC outlets quantity24
Cable length3 m
Colour of productBlack
Dimensions (WxDxH)65 x 1829 x 52 mm
Input frequency50 Hz
LED indicatorsYes
Maximum current32 A
Nominal input voltage230 V
Operating temperature (T-T)0 - 60 °C
PDU typesMetered, Switched
Rack mounting0U
RoHS complianceYes

Similar products

  • Eaton EMIB04
    Eaton EMIB04
  • Eaton EMIB03
    Eaton EMIB03
  • Eaton EMIB00
    Eaton EMIB00
  • Eaton EBAB22
    Eaton EBAB22
  • Eaton EBAB19
    Eaton EBAB19

Eaton EMAB33

ePDU G3 Managed, 22kW, 230V In, IEC 60309 (32A, Three-phase) In, 18x C13 Out, 6x C19 Out

EMAB33

Out of Stock

£1,865.66
£1,554.72 Ex VAT.
