Antenna gain level (max) | 4 dBi |
Antenna type | internal |
Antennas quantity | 4 |
Certification | CE Class B FCC Class B UL-2043 IC Class B |
Depth | 223.9 mm |
Ethernet LAN (RJ-45) ports | 2 |
Ethernet LAN data rates | 10,100,1000,25000 Mbit/s |
Firmware upgradeable | Y |
Flow control support | Y |
Height | 50 mm |
IP address filtering | Y |
LED indicators | LAN,PoE,Power |
MAC address filtering | Y |
Maximum data transfer rate | 2402 Mbit/s |
Mean time between failures (MTBF) | 485000 h |
Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3ab,IEEE 802.3at,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
On/off switch | Y |
Operating relative humidity (H-H) | 10 - 90 % |
Operating temperature (T-T) | 0 - 40 °C |
Output current | 2.5 A |
Output voltage | 12 V |
Placement | Ceiling,Table,Wall |
Power consumption (max) | 27 W |
Power consumption (typical) | 25.1 W |
Power over Ethernet (PoE) | Y |
Reset button | Y |
Security algorithms | SSID,WPA,WPA-RADIUS,WPA2,WPA3 |
Storage relative humidity (H-H) | 5 - 95 % |
Storage temperature (T-T) | -20 - 65 °C |
VLAN support | Y |
WAN connection | Ethernet (RJ-45) |
Web-based management | Y |
Weight | 935 g |
Width | 224.5 mm |
2.4 GHz | Y |
5 GHz | Y |
Internal RJ-45 ports quantity | 1 |
MIMO | Y |
MIMO type | Multi User MIMO |
Product colour | White |
Band Steering | Y |
IPv4 & IPv6 features | IPv6 portal |
Transmitting power (CE) | 20 dBm |
Transmitting power (FCC) | 20 dBm |
Number of SSID supported | 16 |
Maximum data transfer rate (2.4 GHz) | 1147 Mbit/s |
Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
Antenna direction type | omni-directional |
Throughput data rate | 3.6 Mbit/s |
Remote Authentication Dial-In User Service (RADIUS) | Y |
System status alarm | Y |

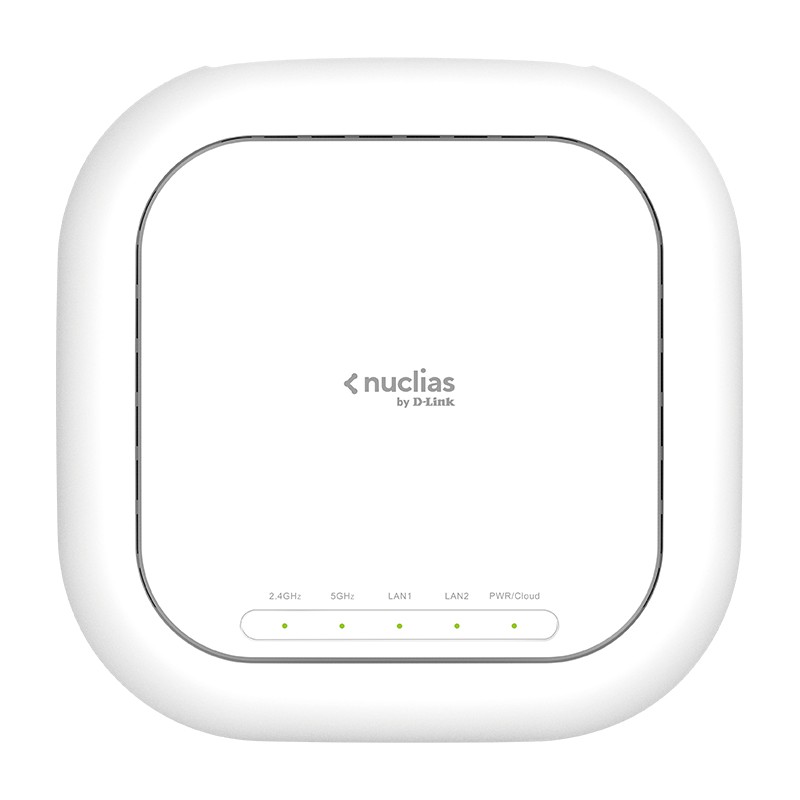

Nuclias AX3600 Wi‑Fi 6 Cloud‑Managed Access Point
DBA-X2830P
Out of Stock
