The DWL Series Unified AC Wave 2 Wireless Access Points leverage the full potential of 802.11ac Wave 2 to provide unparalleled connectivity with ultra-high combined data rates. The DWL-8620AP and DWL-8620APE offer a faster combined speed of up to 2,533 Mbps. In addition, the DWL Series supports Link Aggregation3, which allows two Gigabit Ethernet ports to be linked together and act as a single port to double the available bandwidth and maximize the overall throughput of the access point.
| Antennas quantity | 4 |
| Certification | CE; EN55032, EN55024, EN61000-3-2, EN61000-3-3, EN60601-1-2, EN301489-1, EN301489-17, EN300328, EN301893; FCC; IC; cUL+UL; CB; RCM; NCC; BSMI; |
| Channels quantity | 165 channels |
| DC-in jack | Y |
| Depth | 220 mm |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Height | 47 mm |
| Internal | N |
| MAC address filtering | Y |
| Management protocols | SNMP v1/v2c/v3 |
| Maximum data transfer rate | 2533 Mbit/s |
| Mean time between failures (MTBF) | 460185 h |
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11k,IEEE 802.11n,IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3at,IEEE 802.3u |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Output current | 2.5 A |
| Output voltage | 12 V |
| Package depth | 296 mm |
| Package height | 94 mm |
| Package weight | 1500 g |
| Package width | 295 mm |
| Placement | Ceiling,Wall |
| Power consumption (max) | 24.24 W |
| Power over Ethernet (PoE) | Yes |
| Quality of Service (QoS) support | Y |
| Reset button | Y |
| Security algorithms | AES,TKIP,WPA,WPA-Enterprise,WPA2,WPA2-Enterprise |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -20 - 65 °C |
| VLAN support | Y |
| Web-based management | Y |
| Weight | 920 g |
| Width | 220 mm |
| 2.4 GHz | Y |
| 5 GHz | Y |
| Wi-Fi Multimedia (WMM)/(WME) | Y |
| Auto Wireless Distribution System (WDS) | Y |
| Pallet width | 1200 mm |
| Pallet length | 1100 mm |
| Automatic channel selection | Y |
| MIMO | Y |
| Product colour | White |
| Band Steering | Y |
| Airtime Fairness (ATF) | Y |
| Shipping (inner) case width | 312 mm |
| Shipping (inner) case length | 449 mm |
| Shipping (inner) case height | 328 mm |
| Number of SSID supported | 32 |
| Shipping (inner) case net weight | 7500 g |
| Quantity per shipping (inner) case | 5 pc(s) |
| Shipping (inner) case gross weight | 8365 g |
| Pallet gross weight (air) | 226260 g |
| Number of cartons per pallet (air) | 24 |
| Quantity per pallet (air) | 120 pc(s) |
| Pallet height (air) | 1447 mm |
| Pallet gross weight (sea) | 276950 g |
| Number of cartons per pallet (sea) | 30 |
| Quantity per pallet (sea) | 150 pc(s) |
| Pallet height (sea) | 1775 mm |

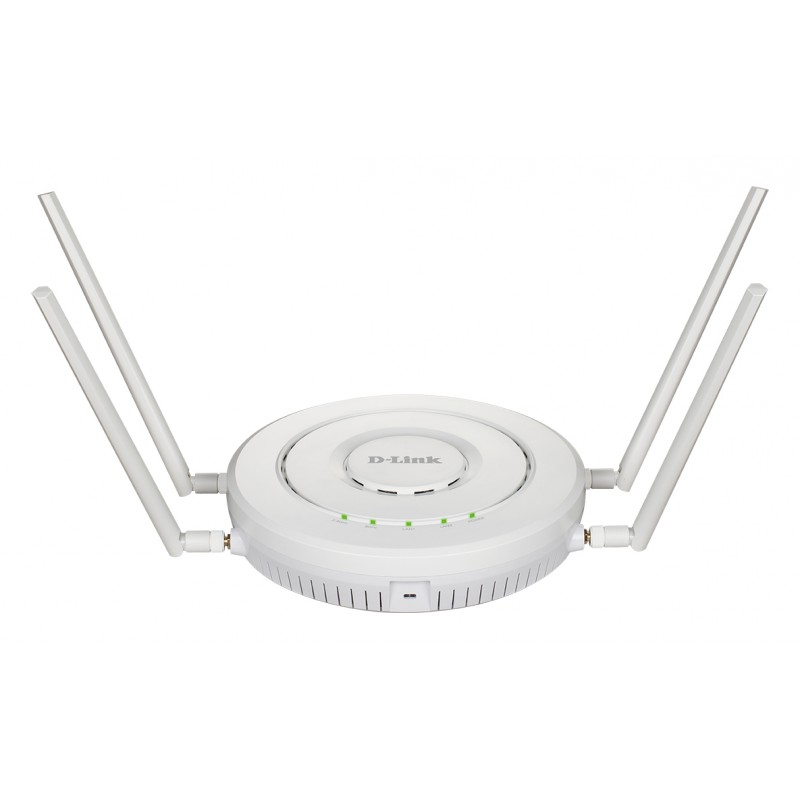

D-Link DWL-8620APE
Wireless AC2600 Wave2 4X4 MU-MIMO Dual Band Unified Access Point with External Antennas
DWL-8620APE
Out of Stock
£437.10
£364.25 Ex VAT.
