Antenna gain level (max) | 5 dBi |
Antenna type | omni |
Antennas quantity | 3 |
Channels quantity | 13 |
Colour of product | White |
Data transfer rate (max) | 1000 Mbit/s |
Depth | 210.8 mm |
Ethernet LAN (RJ-45) ports | 2 |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Flash memory | 256 MB |
Height | 50.8 mm |
Input frequency | 50 - 60 Hz |
Input voltage | 100 - 240 V |
Internal memory | 1024 MB |
Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.1x,IEEE 802.3af,IEEE 802.3at |
Non-operating altitude | 0 - 4572 m |
Operating altitude | 0 - 3000 m |
Operating relative humidity (H-H) | 10 - 90 % |
Operating temperature (T-T) | 0 - 40 °C |
Placement | Wall |
Power consumption (typical) | 16 W |
Receiver sensitivity | 802.11b (CCK)\n-101 dBm @ 1 Mbps\n-98 dBm @ 2 Mbps\n-92 dBm @ 5.5 Mbps\n-89 dBm @ 11 Mbps\n\n802.11g (non HT20)\n-96 dBm @ 6 Mbps\n-95 dBm @ 9 Mbps\n-94 dBm @ 12 Mbps\n-92 dBm @ 18 Mbps\n-88 dBm @ 24 Mbps\n-85 dBm @ 36 Mbps\n◦ -81 dBm @ 48 Mbps\n◦ -79 |
Security algorithms | 802.1x RADIUS,AES,TKIP,WPA,WPA2 |
Storage relative humidity (H-H) | 10 - 90 % |
Storage temperature (T-T) | -30 - 70 °C |
USB 2.0 ports quantity | 1 |
WAN connection | Ethernet (RJ-45) |
Weight | 1410 g |
Wi-Fi data rate (max) | 867 Mbit/s |
Width | 210.8 mm |

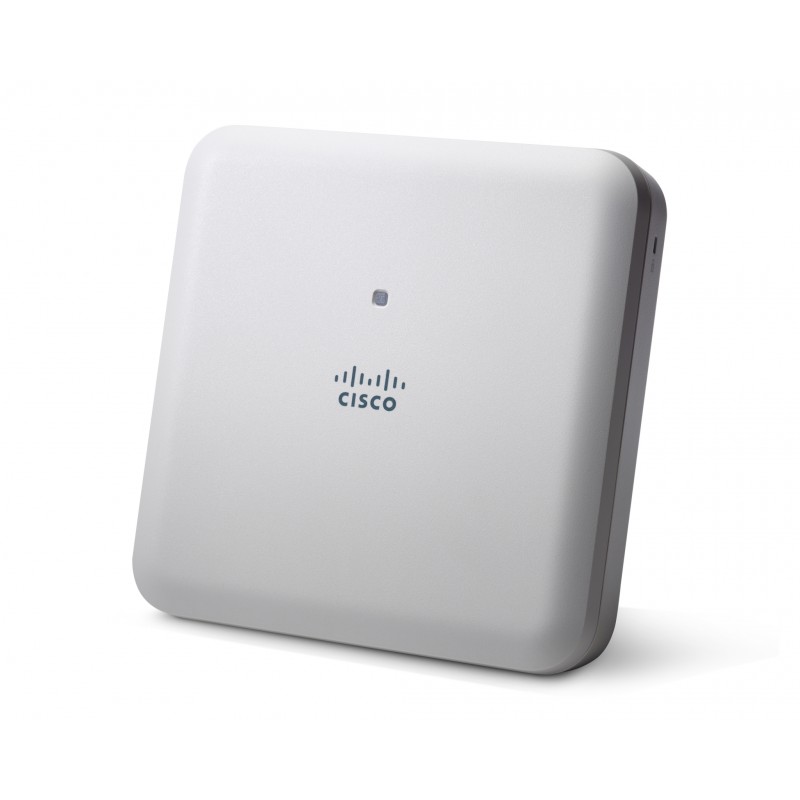

Dual-band, Controller-Based 802.11a/g/n/ac, Wave 2
AIR-AP1832I-E-K9
Out of Stock
