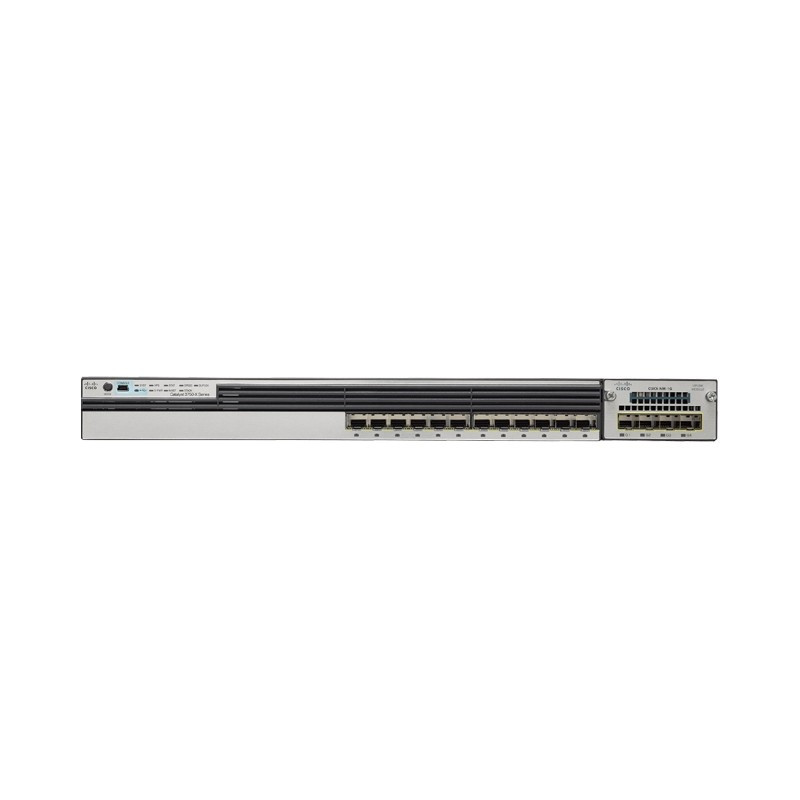

Cisco Catalyst 3850
  • Cisco Catalyst 3850
  • Cisco Catalyst 3850
The Cisco®Catalyst® 3850 Series is the next generation of enterprise-class stackable Ethernet and Multigigabit Ethernet access and aggregation layer switches that provide full convergence between wired and wireless on a single platform. Cisco’s new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480 technology. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ45 and fiber-based downlink interfaces, and redundant fans and power supplies. With speeds that reach 10Gbps, the Catalyst 3850 Multigigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure.
10G supportNo
AC input frequency50/60 Hz
AC input voltage115-230 V
Certification47CFR, AS/NZS CISPR22, CISPR22, EN55022, ICES003, VCCI, EN61000-3-2, EN61000-3-3, KN22, KCC, CNS13438, EN55024, CISPR24, KN24
Colour of productGrey
Copper ethernet cabling technology1000BASE-T,100BASE-TX,10BASE-T
DC-in jackYes
Depth449.5 mm
Energy Star certifiedYes
Form factor1U
Heat dissipation1207 BTU/h
Height44.5 mm
IGMP snoopingYes
Input current4 - 2 A
Jumbo frames supportYes
LED indicatorsYes
MAC address table32000 entries
Mean time between failures (MTBF)315840 h
Multicast supportYes
Networking standardsIEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Number of power supply units1
Operating altitude0 - 3000 m
Operating relative humidity (H-H)5 - 90 %
Operating temperature (T-T)-5 - 45 °C
Power consumption (max)350 W
Power over Ethernet (PoE)No
Power over Ethernet (PoE) supportNo
Quality of Service (QoS) supportYes
Rack mountingYes
SafetyUL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1
Security algorithms802.1x RADIUS,SNMP,SSH
Spanning tree protocolYes
StackableYes
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Switch layerL3
Switch typeManaged
Switching capacity68 Gbit/s
Throughput50.5 Mpps
Web-based managementYes
Weight7020 g
Width444.5 mm
SFP module slots quantity12

Similar products

  • Cisco Catalyst 3650
    Cisco Catalyst 3650
  • Cisco Catalyst 3650
    Cisco Catalyst 3650
  • Cisco 5548UP
    Cisco 5548UP
  • Cisco WS-C4948E-S
    Cisco WS-C4948E-S
  • Cisco 5596UP
    Cisco 5596UP

Cisco Catalyst 3850

Stackable 12 SFP Ethernet ports, with 350WAC power supply, 1 RU, IP Base feature set

WS-C3850-12S-S

Stock Due 01-02-2025

£12,644.04
£10,536.70 Ex VAT.
