10G support | No |
AC input frequency | 50/60 Hz |
AC input voltage | 100-240 V |
Access Control List (ACL) | Yes |
Auto MDI/MDI-X | Yes |
Bandwidth | 160 Gbit/s |
Basic switching RJ-45 Ethernet ports quantity | 48 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Certification | 47CFR Part 15 (CFR 47) Class A (FCC Part 15 Class A)\nAS/NZS CISPR22 Class A\nCISPR22 Class A\nEN55022 Class A\nICES003 Class A\nVCCI Class A\nEN61000-3-2\nEN61000-3-3\nKN22 Class A\nKCC\nCNS13438 Class A\nEN55024\nCISPR24\nKN24 |
Colour of product | Black |
Depth | 448 mm |
DHCP server | Yes |
Flash memory | 2000 MB |
Form factor | 1U |
Full duplex | Yes |
Height | 44 mm |
IGMP snooping | Yes |
Internal memory | 4096 MB |
IP routing | Yes |
Jumbo frames support | Yes |
LED indicators | Yes |
Link aggregation | Yes |
MAC address table | 32000 entries |
Mean time between failures (MTBF) | 383760 h |
Memory type | DRAM |
Multicast support | Yes |
Networking standards | IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
Noise level | 48 dB |
Non-operating altitude | 0 - 5000 m |
Number of power supply units | 1 |
Number of VLANs | 4094 |
Operating altitude | 0 - 1500 m |
Operating relative humidity (H-H) | 5 - 96 % |
Operating temperature (T-T) | -5 - 50 °C |
Power over Ethernet (PoE) | Yes |
Power over Ethernet (PoE) support | Yes |
Quality of Service (QoS) support | Yes |
Rack mounting | Yes |
Rate limiting | Yes |
Redundant power supply (RPS) support | Yes |
Safety | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, GOST, NOM |
SFP ports quantity | 4 |
Spanning tree protocol | Yes |
SSH/SSL support | Yes |
Stackable | Yes |
Storage temperature (T-T) | -40 - 70 °C |
Switch layer | L3 |
Switch type | Managed |
Switching capacity | 176 Gbit/s |
VLAN support | Yes |
Web-based management | Yes |
Width | 445 mm |
SFP module slots quantity | 4 |

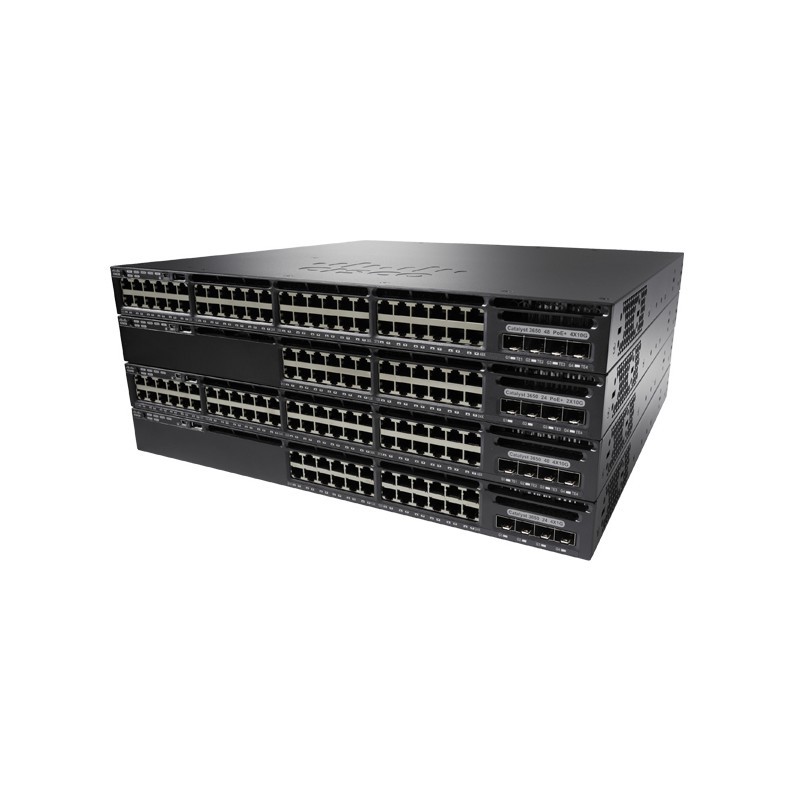

Catalyst 3650-48FWS-S, Standalone, 1U, 48 x 10/100/1000 Ethernet FPoE, 4x1G Uplink ports, DRAM 4GB, Flash 2GB, IP Base w/5 AP licenses
WS-C3650-48FWS-S
Out of Stock
