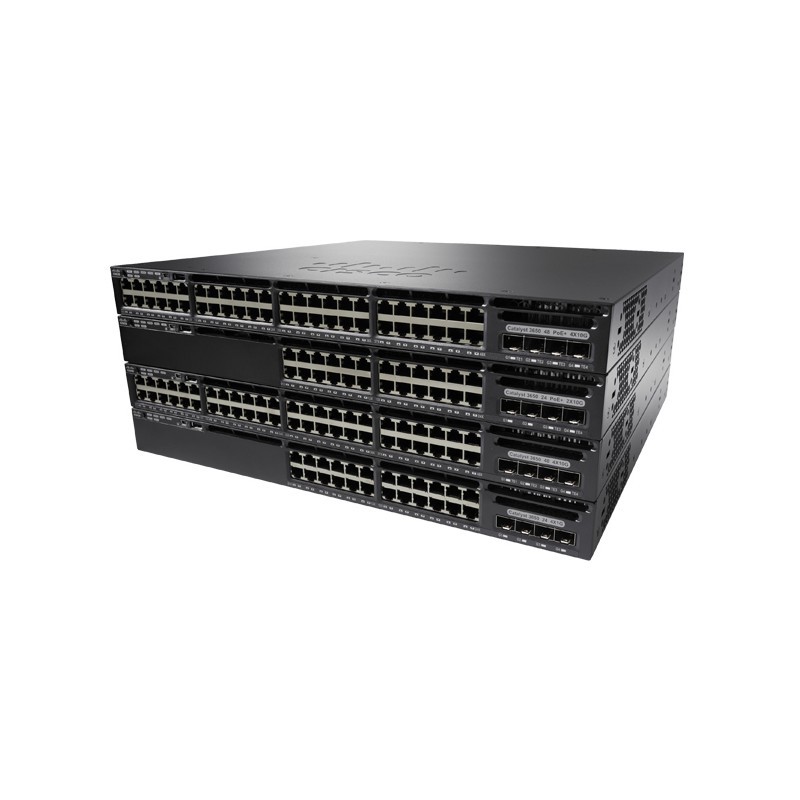

The Cisco Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco® Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), and offer modular and field-replaceable redundant fans and power supplies. They can help you increase wireless productivity and reduce your TCO.
| 10G support | Yes |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100-240 V |
| Access Control List (ACL) | Yes |
| Auto MDI/MDI-X | Yes |
| Bandwidth | 160 Gbit/s |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Certification | 47CFR Part 15 (CFR 47) Class A (FCC Part 15 Class A)\nAS/NZS CISPR22 Class A\nCISPR22 Class A\nEN55022 Class A\nICES003 Class A\nVCCI Class A\nEN61000-3-2\nEN61000-3-3\nKN22 Class A\nKCC\nCNS13438 Class A\nEN55024\nCISPR24\nKN24 |
| Colour of product | Black |
| Depth | 448 mm |
| DHCP server | Yes |
| Flash memory | 2000 MB |
| Form factor | 1U |
| Full duplex | Yes |
| Height | 44 mm |
| IGMP snooping | Yes |
| Internal memory | 4096 MB |
| IP routing | Yes |
| Jumbo frames support | Yes |
| LED indicators | Yes |
| Link aggregation | Yes |
| MAC address table | 32000 entries |
| Mean time between failures (MTBF) | 383760 h |
| Memory type | DRAM |
| Multicast support | Yes |
| Networking standards | IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Noise level | 48 dB |
| Non-operating altitude | 0 - 5000 m |
| Number of power supply units | 1 |
| Number of VLANs | 4094 |
| Operating altitude | 0 - 1500 m |
| Operating relative humidity (H-H) | 5 - 96 % |
| Operating temperature (T-T) | -5 - 50 °C |
| Operating temperature range (T-T) | -5 - 50 °C |
| Power consumption (typical) | 102.1 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) support | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Quality of Service (QoS) support | Yes |
| Rack mounting | Yes |
| Rate limiting | Yes |
| Redundant power supply (RPS) support | Yes |
| Safety | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, GOST, NOM |
| Spanning tree protocol | Yes |
| SSH/SSL support | Yes |
| Stackable | Yes |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage temperature range (T-T) | -40 - 70 °C |
| Switch layer | L3 |
| Switch type | Managed |
| Switching capacity | 176 Gbit/s |
| Total Power over Ethernet (PoE) budget | 390 W |
| VLAN support | Yes |
| Web-based management | Yes |
| Weight | 7600 g |
| Width | 445 mm |
| SFP+ module slots quantity | 4 |
