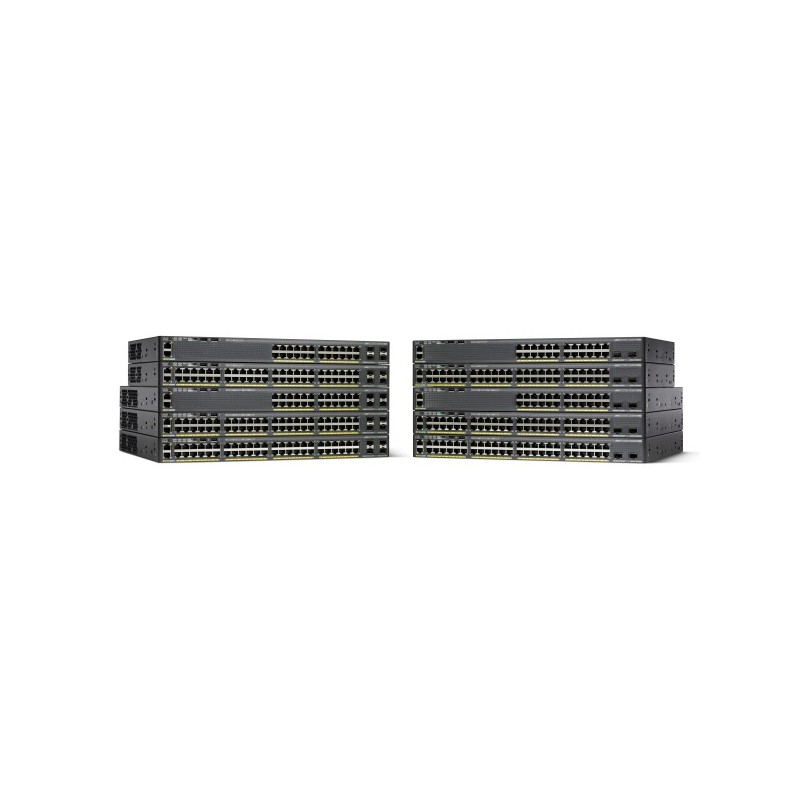

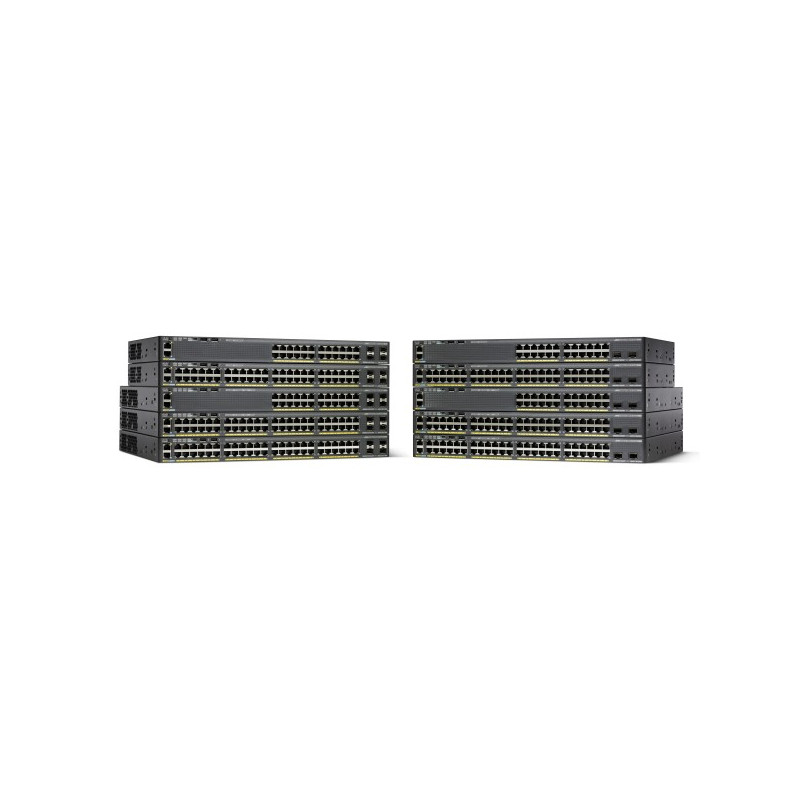

Cisco® Catalyst® 2960-X Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS® Software features.
- 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance.
- Gigabit Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks.
- FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional).
- Power over Ethernet Plus (PoE+) support with up to 740W of PoE budget.
- Reduced power consumption and advanced energy management features.
- USB and Ethernet management interfaces for simplified operations.
- Application visibility and capacity planning with integrated NetFlow-Lite.
- LAN Base or LAN Lite Cisco IOS® software features.
- Enhanced limited lifetime warranty (E-LLW) offering next-business-day hardware replacement.
- 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance.
- Gigabit Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks.
- FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional).
- Power over Ethernet Plus (PoE+) support with up to 740W of PoE budget.
- Reduced power consumption and advanced energy management features.
- USB and Ethernet management interfaces for simplified operations.
- Application visibility and capacity planning with integrated NetFlow-Lite.
- LAN Base or LAN Lite Cisco IOS® software features.
- Enhanced limited lifetime warranty (E-LLW) offering next-business-day hardware replacement.
| 10G support | Yes |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100-240 V |
| Access Control List (ACL) | Yes |
| Auto MDI/MDI-X | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Yes |
| Built-in processor | APM86392 |
| Colour of product | Black |
| Console port | RJ-45 |
| Depth | 408 mm |
| DHCP server | Yes |
| Flash memory | 128 MB |
| Full duplex | Yes |
| Height | 44.5 mm |
| IGMP snooping | Yes |
| Internal memory | 512 MB |
| Jumbo frames support | Yes |
| LED indicators | Yes |
| Link aggregation | Yes |
| Mean time between failures (MTBF) | 440880 h |
| Memory type | DRAM |
| Multicast support | Yes |
| Networking standards | IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Noise level | 45 dB |
| Non-operating altitude | 0 - 4000 m |
| Number of power supply units | 1 |
| Number of VLANs | 1023 |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 10 - 95 % |
| Operating relative humidity range | 10 - 95 % |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating temperature range (T-T) | 5 - 40 °C |
| Output power | 250 W |
| Power consumption (typical) | 44.8 W |
| Power LED | Yes |
| Processor clock speed | 600 MHz |
| Processor frequency | 600 MHz |
| Quality of Service (QoS) support | Yes |
| Rack mounting | Yes |
| Rate limiting | Yes |
| Redundant power supply (RPS) support | Yes |
| Safety | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1 |
| Spanning tree protocol | Yes |
| SSH/SSL support | Yes |
| Stackable | Yes |
| Storage relative humidity (H-H) | 10 - 95 % |
| Storage relative humidity range | 10 - 95 % |
| Storage temperature (T-T) | -25 - 70 °C |
| Storage temperature range (T-T) | -25 - 70 °C |
| Switch layer | L2 |
| Switch type | Managed |
| Switching capacity | 216 Gbit/s |
| USB 2.0 ports quantity | 2 |
| VLAN support | Yes |
| Web-based management | Yes |
| Weight | 6100 g |
| Width | 445 mm |
| SFP+ module slots quantity | 2 |
