Cisco Catalyst 2960-XR

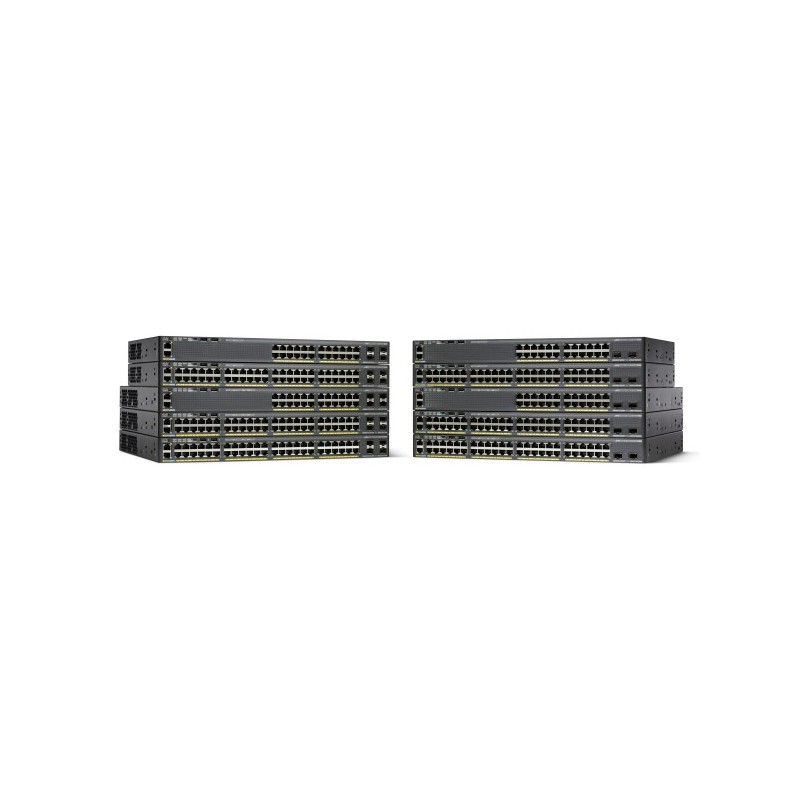

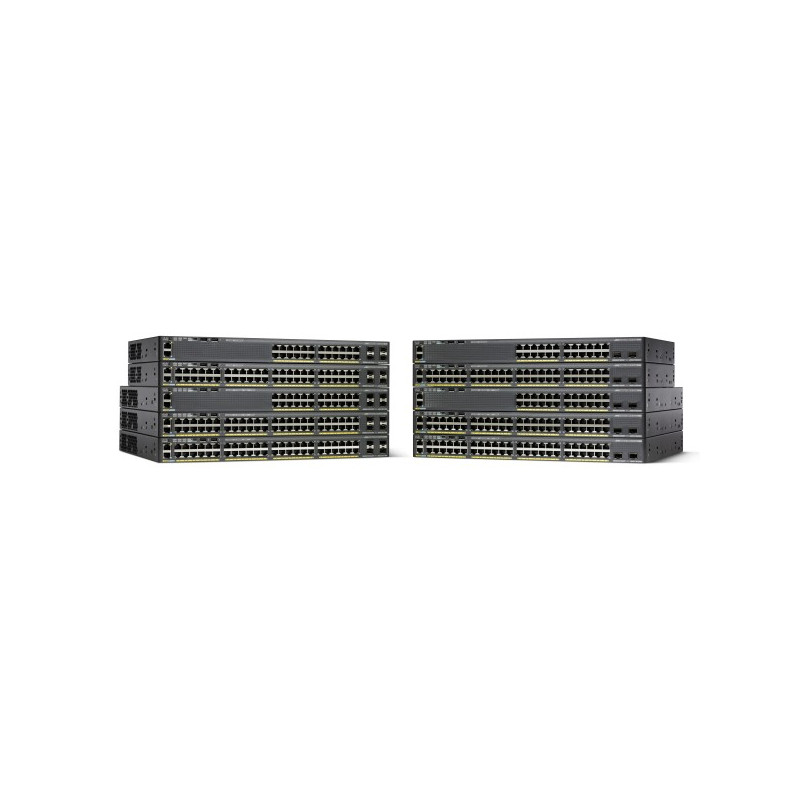

Cisco® Catalyst® 2960-X Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS® Software features.



- 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance.

- Gigabit Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks.

- FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional).

- Power over Ethernet Plus (PoE+) support with up to 740W of PoE budget.

- Reduced power consumption and advanced energy management features.

- USB and Ethernet management interfaces for simplified operations.

- Application visibility and capacity planning with integrated NetFlow-Lite.

- LAN Base or LAN Lite Cisco IOS® software features.

- Enhanced limited lifetime warranty (E-LLW) offering next-business-day hardware replacement.
10G supportYes
AC input frequency50/60 Hz
AC input voltage100-240 V
Access Control List (ACL)Yes
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlYes
Built-in processorAPM86392
Colour of productBlack
Console portRJ-45
Depth408 mm
DHCP serverYes
Flash memory128 MB
Full duplexYes
Height44.5 mm
IGMP snoopingYes
Internal memory512 MB
Jumbo frames supportYes
LED indicatorsYes
Link aggregationYes
Mean time between failures (MTBF)275430 h
Memory typeDRAM
Multicast supportYes
Networking standardsIEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Noise level48 dB
Non-operating altitude0 - 4000 m
Number of power supply units1
Number of VLANs1023
Operating altitude0 - 3000 m
Operating relative humidity (H-H)10 - 95 %
Operating relative humidity range10 - 95 %
Operating temperature (T-T)-5 - 40 °C
Operating temperature range (T-T)5 - 40 °C
Output power640 W
Power consumption (typical)54.8 W
Power LEDYes
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity24
Power over Ethernet (PoE) supportYes
Processor clock speed600 MHz
Processor frequency600 MHz
Quality of Service (QoS) supportYes
Rack mountingYes
Rate limitingYes
Redundant power supply (RPS) supportYes
SafetyUL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
Spanning tree protocolYes
SSH/SSL supportYes
StackableYes
Storage relative humidity (H-H)10 - 95 %
Storage relative humidity range10 - 95 %
Storage temperature (T-T)-25 - 70 °C
Storage temperature range (T-T)-25 - 70 °C
Switch layerL2
Switch typeManaged
Switching capacity216 Gbit/s
Total Power over Ethernet (PoE) budget370 W
USB 2.0 ports quantity2
VLAN supportYes
Web-based managementYes
Weight6400 g
Width445 mm
SFP+ module slots quantity2

ws-c2960xr-48lpd-i.pdf

Download (381.61k)

Similar products

  • Cisco Catalyst 3650
    Cisco Catalyst 3650
  • Cisco Catalyst 3650
    Cisco Catalyst 3650
  • Cisco 5548UP
    Cisco 5548UP
  • Cisco WS-C4948E-S
    Cisco WS-C4948E-S
  • Cisco 5596UP
    Cisco 5596UP

Cisco Catalyst 2960-XR

Catalyst 2960-XR, 48 x 10/100/1000 Ethernet, 2 x SFP+, APM86392 600MHz dual core, DRAM 512MB, Flash 128MB, PoE 370W, IP Lite

WS-C2960XR-48LPD-I

Out of Stock

£12,095.09
£10,079.24 Ex VAT.
