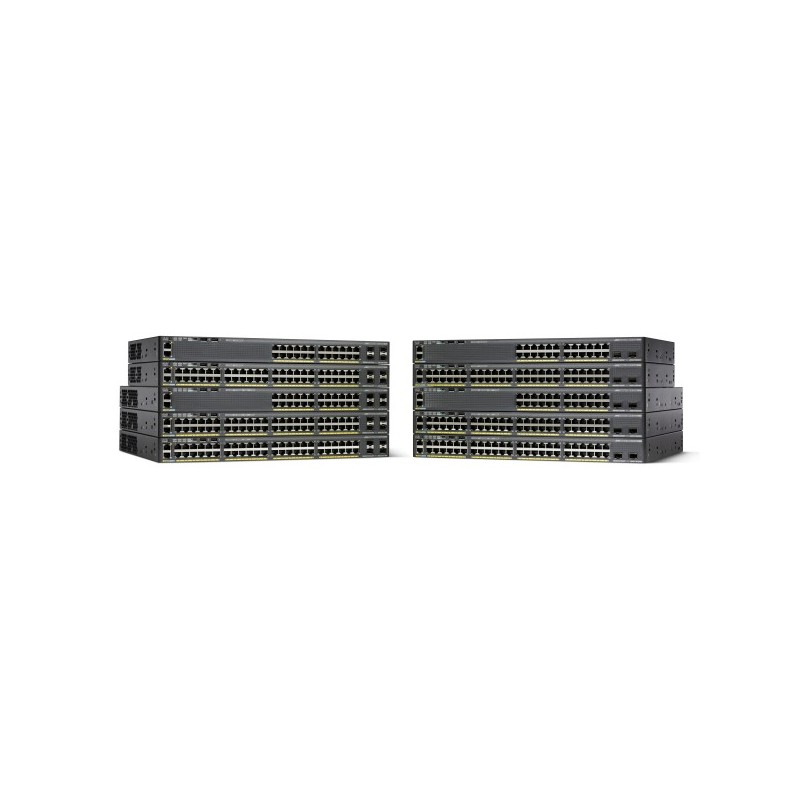

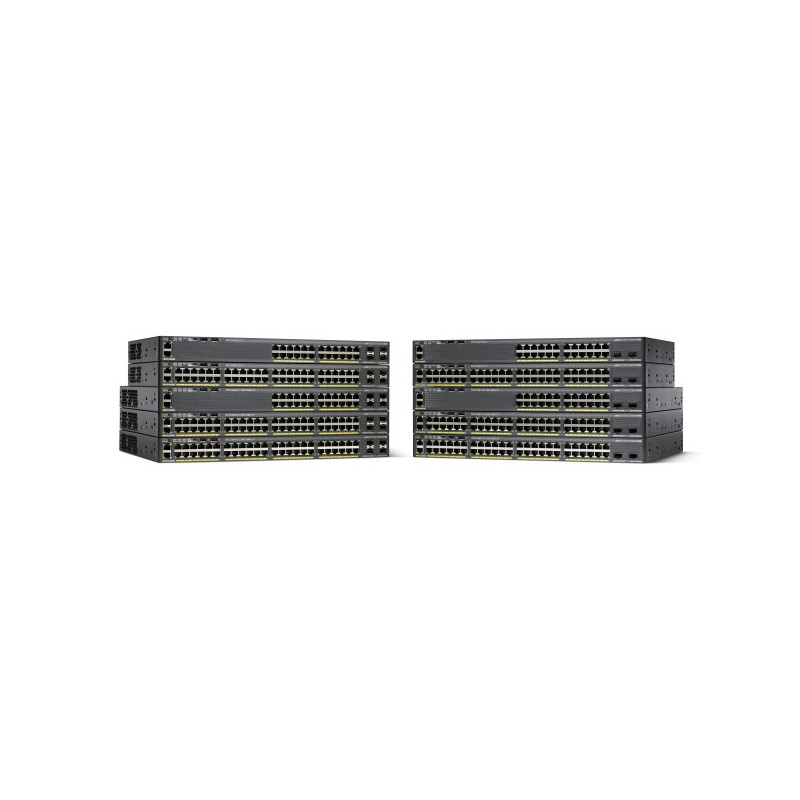

Cisco® Catalyst® 2960-X Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS® Software features.
- 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance.
- Gigabit Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks.
- FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional).
- Power over Ethernet Plus (PoE+) support with up to 740W of PoE budget.
- Reduced power consumption and advanced energy management features.
- USB and Ethernet management interfaces for simplified operations.
- Application visibility and capacity planning with integrated NetFlow-Lite.
- LAN Base or LAN Lite Cisco IOS® software features.
- Enhanced limited lifetime warranty (E-LLW) offering next-business-day hardware replacement.
- 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance.
- Gigabit Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks.
- FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional).
- Power over Ethernet Plus (PoE+) support with up to 740W of PoE budget.
- Reduced power consumption and advanced energy management features.
- USB and Ethernet management interfaces for simplified operations.
- Application visibility and capacity planning with integrated NetFlow-Lite.
- LAN Base or LAN Lite Cisco IOS® software features.
- Enhanced limited lifetime warranty (E-LLW) offering next-business-day hardware replacement.
| AC input frequency | 50/60 Hz |
| AC input voltage | 100-240 V |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Built-in processor | APM86392 |
| Colour of product | Black |
| Flash memory | 128 MB |
| Height | 45 mm |
| Internal memory | 512 MB |
| LED indicators | Yes |
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Noise level | 48 dB |
| Number of VLANs | 1023 |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity range | 10 - 95 % |
| Operating temperature range (T-T) | 5 - 40 °C |
| Power consumption (typical) | 36.9 W |
| Power LED | Yes |
| Processor clock speed | 600 MHz |
| Rack mounting | Yes |
| Safety | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1 |
| Storage relative humidity range | 10 - 95 % |
| Storage temperature range (T-T) | -25 - 70 °C |
| Switch layer | L2 |
| Switch type | Managed |
| Switching capacity | 216 Gbit/s |
| USB 2.0 ports quantity | 2 |
| Weight | 4 kg |
| Width | 445 mm |
Similar products
-
Cisco Catalyst 3650
-
Cisco Catalyst 3650
-
Cisco 5548UP
-
Cisco WS-C4948E-S
-
Cisco 5596UP
Cisco Catalyst 2960-X
Catalyst 2960-X, 24 x 10/100/1000 Ethernet, 4 x SFP, APM86392 600MHz dual core, DRAM 512MB, Flash 128MB, LAN Base
WS-C2960X-24TS-L
Out of Stock
£2,661.57
£2,217.97 Ex VAT.
