AC input frequency | 50/60 Hz |
AC input voltage | 100-240 V |
Bandwidth | 16 Gbit/s |
Basic switching RJ-45 Ethernet ports quantity | 48 |
Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
Bundled software | Cisco IOS LAN Lite |
Colour of product | Black |
Console port | RJ-45 |
Depth | 332 mm |
Flash memory | 64 MB |
Flow control support | Yes |
Full duplex | Yes |
Height | 44 mm |
Internal memory | 128 MB |
Jumbo frames support | Yes |
LED indicators | Yes |
Link aggregation | Yes |
MAC address filtering | Yes |
Manual | Yes |
Mean time between failures (MTBF) | 312 h |
Memory type | DRAM |
MIB support | Yes |
Multicast support | Yes |
Networking standards | IEEE 802.1p,IEEE 802.1x,IEEE 802.3af |
Noise level | 41 dB |
Non-operating altitude | 0 - 4000 m |
Number of VLANs | 64 |
Operating altitude | 0 - 3000 m |
Operating relative humidity (H-H) | 10 - 95 % |
Operating relative humidity range | 10 - 95 % |
Operating temperature (T-T) | -5 - 40 °C |
Power consumption (typical) | 51.4 W |
Power LED | Yes |
Power over Ethernet (PoE) | Yes |
Power over Ethernet (PoE) ports quantity | 24 |
Power over Ethernet (PoE) support | Yes |
Quality of Service (QoS) support | Yes |
Rate limiting | Yes |
Security algorithms | 802.1x RADIUS |
Security algorithms supported | 802.1x RADIUS |
Stackable | No |
Storage relative humidity (H-H) | 10 - 95 % |
Storage relative humidity range | 10 - 95 % |
Storage temperature (T-T) | -25 - 70 °C |
Storage temperature range (T-T) | -25 - 70 °C |
Switch layer | L2 |
Switch type | Managed |
Throughput | 13.1 Mpps |
Total Power over Ethernet (PoE) budget | 370 W |
User guide | Yes |
VLAN support | Yes |
Web-based management | Yes |
Weight | 5400 g |
Width | 450 mm |
SFP module slots quantity | 2 |

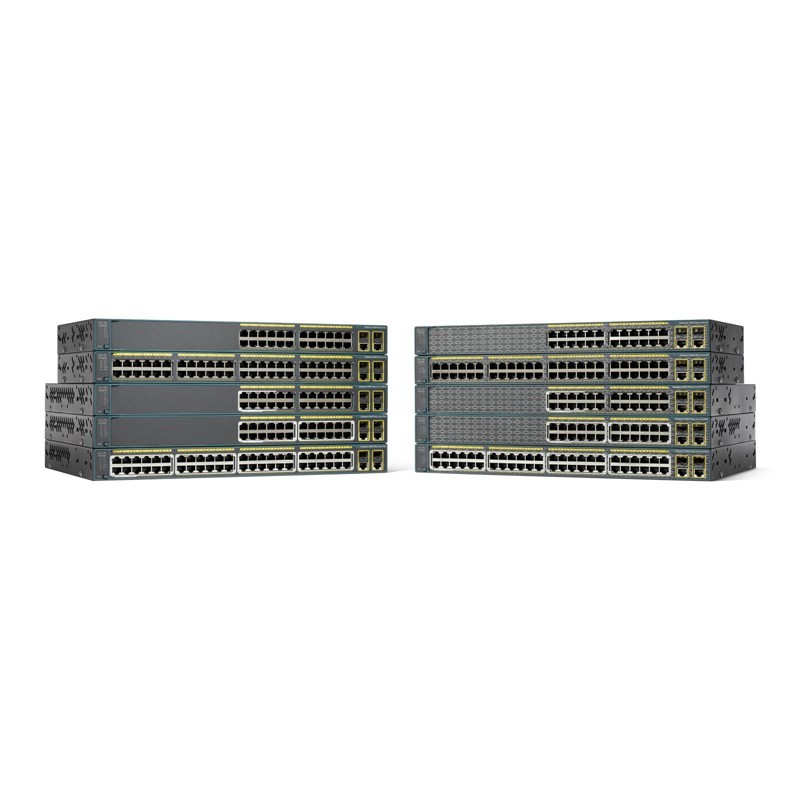

Catalyst 2960-Plus switch, 48 x 10/100 Ethernet Ports, 2 SFP + 2 1000BASE-T Uplinks, LAN Lite, 370 W PoE
WS-C2960+48PST-S
Out of Stock
