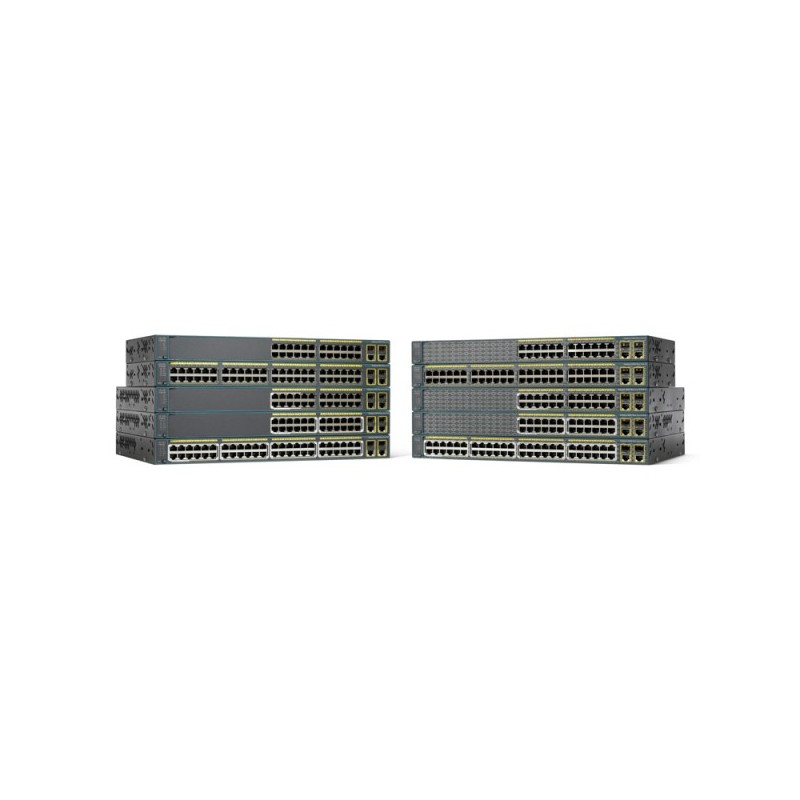

Cisco Catalyst 2960-Plus
Lower TCO with Fast Ethernet Access



Deliver reliable and cost-effective network access with the Cisco Catalyst 2960-Plus Series of Fast Ethernet switches. These products provide the operational benefits of Cisco IOS Software for a range of wired access applications, including branches, conventional office workspaces, and infrastructure networks.



Cisco Catalyst 2960-Plus Switches feature:



- IEEE 802.3af-compliant Power over Ethernet (PoE)

- LAN Base or LAN Lite Cisco IOS Software feature set

- SmartOperations tools that simplify deployment and reduce the cost of network administration

- Cisco EnergyWise technology to manage energy consumed by connected devices

- An enhanced limited lifetime hardware warranty (E-LLW), providing next-business-day replacement



Applications and Benefits



The Cisco Catalyst 2960-Plus Series provides cost-effective, enterprise class Ethernet switching for:



- Branch offices, remote sites, and retail locations

- Conventional desktop workspaces

- Building infrastructure, physical security, and other nontraditional access applications

- Benefits of the 2960-Plus include:

- Robust quality of service (QoS) that prioritizes voice and critical business applications

- Flexible security features that can limit access to the network and mitigate threats

- Tools that reduce total cost of ownership through simplified operations and automation
AC input frequency50/60 Hz
AC input voltage100-240 V
Bandwidth16 Gbit/s
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Bundled softwareCisco IOS LAN Base
Colour of productBlack
Console portRJ-45
Depth332 mm
Flash memory64 MB
Flow control supportYes
Full duplexYes
Height44 mm
Internal memory128 MB
Jumbo frames supportYes
LED indicatorsYes
Link aggregationYes
MAC address filteringYes
ManualYes
Mean time between failures (MTBF)312 h
Memory typeDRAM
MIB supportYes
Multicast supportYes
Networking standardsIEEE 802.1p,IEEE 802.1x,IEEE 802.3af
Noise level41 dB
Non-operating altitude0 - 4000 m
Number of VLANs255
Operating altitude0 - 3000 m
Operating relative humidity (H-H)10 - 95 %
Operating relative humidity range10 - 95 %
Operating temperature (T-T)-5 - 40 °C
Power consumption (typical)51.4 W
Power LEDYes
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity24
Power over Ethernet (PoE) supportYes
Quality of Service (QoS) supportYes
Rate limitingYes
Security algorithms802.1x RADIUS
Security algorithms supported802.1x RADIUS
StackableNo
Storage relative humidity (H-H)10 - 95 %
Storage relative humidity range10 - 95 %
Storage temperature (T-T)-25 - 70 °C
Storage temperature range (T-T)-25 - 70 °C
Switch layerL2
Switch typeManaged
Throughput13.1 Mpps
Total Power over Ethernet (PoE) budget370 W
User guideYes
VLAN supportYes
Web-based managementYes
Weight5400 g
Width450 mm
SFP module slots quantity2

Similar products

  • Cisco Catalyst 3650
    Cisco Catalyst 3650
  • Cisco Catalyst 3650
    Cisco Catalyst 3650
  • Cisco 5548UP
    Cisco 5548UP
  • Cisco WS-C4948E-S
    Cisco WS-C4948E-S
  • Cisco 5596UP
    Cisco 5596UP

Cisco WS-C2960+48PST-L

Catalyst 2960-Plus switch, 48 x 10/100 Ethernet Ports, 2 SFP + 2 1000BASE-T Uplinks, LAN Base, 370 W PoE

WS-C2960+48PST-L

Out of Stock

£4,453.56
£3,711.30 Ex VAT.
