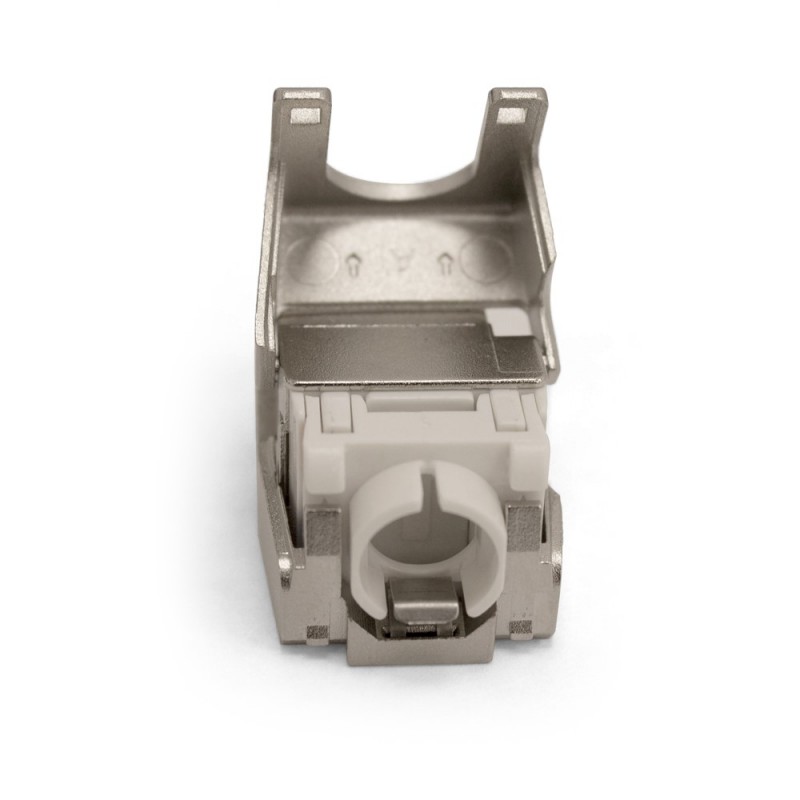

Connectix Cat6A Keystone Modules have been designed to provide the exceptional performance required to support extremely high speed applications, including 10-Gigabit Ethernet.
When used with Connectix Cat6a Cable, the Category 6A Keystone Modules provide an outstanding transmission medium free from the problems of alien crosstalk.
The tool-less and snap-to-fit module ensures a quick and easy to terminate installation, and the standard Keystone fitting allows the use of the same module in patch panels, wall outlets and a variety of other applications.
Features:
- Cat6A performance
- Suitable for 10-Gigabit Ethernet
- Fully shielded die-cast design
- No special tooling required
- Industry standard Keystone fitting
- Tool-less snap-to-fit module
Specification:
- Mounting hole size - 19.3 x 14.7mm
- Recommended back-box depth - 40mm
- Width - 18.0mm
- Depth - 44.2mm
- Height - 22.8mm
- Copper conductor diameter - 24 AWG
- Life (operations) - Min. 750
- Shielding housing - Zinc die-cast
- Colour code - T568B
- Conforms to - ANSI/TIA 568-C Category 6A IEEE802.3an 10-Gigabit Ethernet
| Faceplate Included | No |
| Module Size | Keystone Jack |
| Shielded | Yes |
| Specification | Cat6a |
| Termination | Tool-less |
Neil C - 16/02/2023
Good quality, secure closure and labelled CAT6A on the front.
Steve B - 03/12/2022
A mixed result really, the tool-less aspect is good in principle but not all the wires were being punched down between the blades which has taken far longer than I hoped. About 11 have not worked properly and needed additional tooling to make good out of the 24 I purchased. For reference I used cat 6a SFTP cable also purchased through Cable Monkey.
Ash B - 30/11/2019
A whole lot easier to terminate than the traditional punch down terminals
