APC Symmetra LX 16kVA
  • APC Symmetra LX 16kVA
  • APC Symmetra LX 16kVA
  • APC Symmetra LX 16kVA
  • APC Symmetra LX 16kVA
  • APC Symmetra LX 16kVA
  • APC Symmetra LX 16kVA
  • APC Symmetra LX 16kVA
  • APC Symmetra LX 16kVA

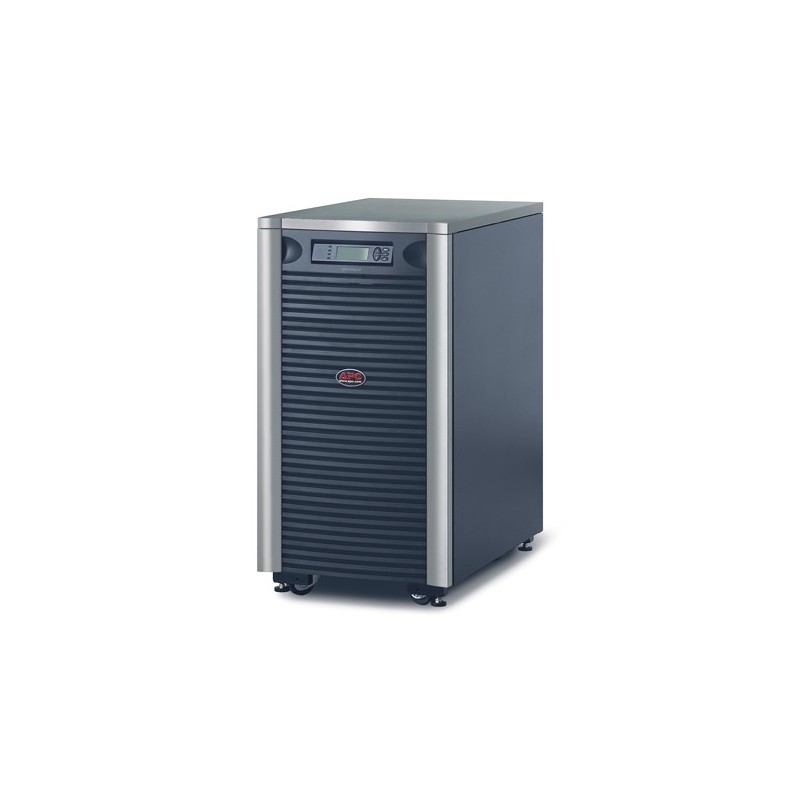

APC Symmetra LX, 11.2 kW / 16 kVA,Input 230V, 400V 3PH / Output 230V, Interface Port DB-9 RS-232, Smart-Slot, Extended runtime model.



Includes: CD with software, Documentation CD, Installation guide, User Manual, Web/SNMP Management Card.
Battery recharge time3 h
Battery technologySealed Lead Acid (VRLA)
CertificationC-tick,CE,EN 50091-1,EN 50091-2,EN 55022 A,EN 55024,EN 60950,GOST,IEC 60950,VDE
Dimensions (WxDxH)483 x 726 x 937 mm
Input connection type(1PH+N+G)/(3PH + N + G)
InterfaceDB-9, RS-232
Nominal output voltage230 V
Non-operating altitude0 - 4500 m
Operating altitude0 - 3000 m
Operating relative humidity range0 - 95 %
Operating temperature range (T-T)0 - 40 °C
Output connections1xHard Wire 3-wire (H N + G)
Output power11200 W
Output power capacity (VA)16000 VA
Output voltage note220-230/240 V
Package dimensions (WxDxH)599 x 997 x 1181 mm
Package weight337.73 kg
Replacement battery cartridgeSYBT5
Storage relative humidity range0 - 95 %
Storage temperature range (T-T)-15 - 45 °C
Typical backup time at full load7.5 min
Typical backup time at half load20.3 min
Weight307.73 kg

Similar products

  • APC 60kW 400V MAIN SERV. BYPASS PANEL
    APC 60kW 400V MAIN SERV. BYPASS PANEL
  • APC 80KW 400V MAIN SERV. BYPASS PANEL
    APC 80KW 400V MAIN SERV. BYPASS PANEL
  • APC Back-UPS 325, UK
    APC Back-UPS 325, UK
  • APC Back-UPS Pro
    APC Back-UPS Pro
  • APC Smart UPS
    APC Smart UPS

APC Symmetra LX 16kVA

Symmetra LX 16kVA Scalable to 16kVA N+1 Tower, 220/230/240V or 380/400/415V

SYAF16KRMI

Out of Stock

£7,217.32
£6,014.43 Ex VAT.
