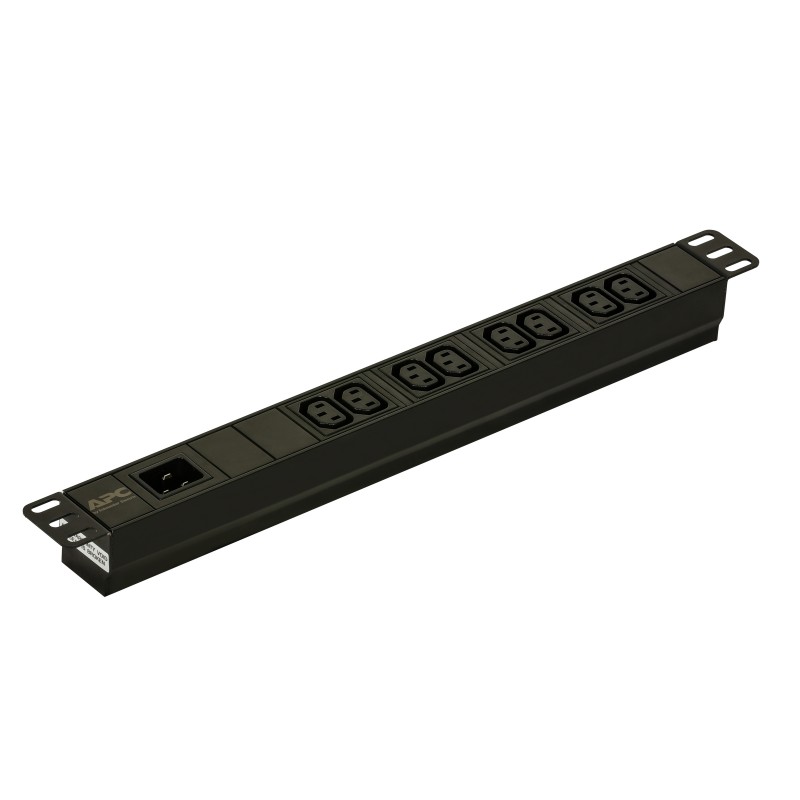

APC EPDU1016B
  • APC EPDU1016B
  • APC EPDU1016B
  • APC EPDU1016B
  • APC EPDU1016B
  • APC EPDU1016B
Easy Basic PDU provide reliable rack power distribution units (PDU) that offer more than a power strip for server rack and network rack solutions.AgilityRack-Mountable Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.Wide range of input and output connections Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.Single input power source Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.Cost SavingsLow Cost Power Distribution Provides a number of outlets to bring power to rack equipment at an affordable price.
AC input frequency50/60 Hz
AC outlet typesC13 coupler
AC outlets quantity8 AC outlet(s)
Cable length2.5 m
CertificationCE, TÜV
Daisy chainN
Depth44 mm
Height44 mm
Housing materialAluminium
Load capacity3680 VA
ManualY
Maximum current16 A
Maximum input current per phase16 A
MountingHorizontal
Nominal input voltage200/208/230 V
Nominal output voltage208/230 V
Non-operating altitude0 - 15000 m
On/off switchN
Operating altitude0 - 3000 m
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)-5 - 45 °C
Package depth80 mm
Package height150 mm
Package weight1180 g
Package width560 mm
PDU typesBasic
Power plugC20 coupler
Rack capacity1U
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-25 - 65 °C
TypeSingle-phase
Weight580 g
Width482 mm
Product colourBlack
Sustainability certificatesRoHS

epdu1016b.pdf

APC EPDU1016B Data Sheet

Download (261.46k)
