Metered rack Power Distribution Units (PDUs) provide real-time remote monitoring of connected loads. User-defined alarms warn of potential circuit overloads before critical IT failures occur.
| AC input frequency | 50 - 60 Hz |
| AC outlets quantity | 1 AC outlet(s) |
| Cable length | 0.91 m |
| Cables included | RS-232 |
| Dimensions (WxDxH) | 178 x 140 x 44 mm |
| Display | LED |
| Input connection type | IEC 309 32A 3P+N+E |
| Load capacity | 22080 VA |
| Manual | Y |
| Maximum current | 32 A |
| Monitoring | Current |
| Nominal input voltage | 400 V |
| Nominal output voltage | 230 V |
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -5 - 45 °C |
| Output connections | IEC 309 32A 3P+N+E |
| Package depth | 185 mm |
| Package dimensions (WxDxH) | 330 x 185 x 246 mm |
| Package height | 246 mm |
| Package weight | 3520 g |
| Package width | 330 mm |
| PDU types | Metered |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -25 - 65 °C |
| Type | Three-phase |
| Weight | 2890 g |
| Product colour | Black |
| Sustainability certificates | RoHS |

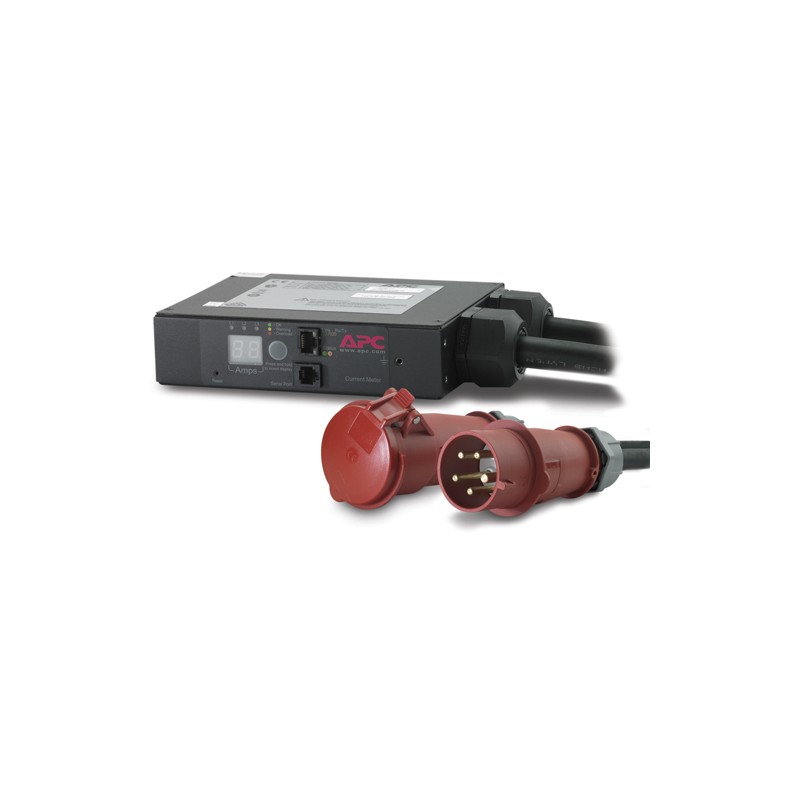

APC AP7175B
In-Line Current Meter, 32A, 230V, IEC309-32A 3-PH, 3P+N+G
AP7175B
Out of Stock
£588.53
£490.44 Ex VAT.
